    Super Silent Industrial Portable Generators 1350KW / 1700KVA For Power Station

    Ask Lasest Price
    Brand Name : STONE POWER
    Model Number : SM1700E5
    Certification : CE,ISO
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T,
    Supply Ability : 100 SETS/month
    Delivery Time : 25 days after we get the down payment generally, if you are in hurry, please advise us inadvance, then we can make adjustment accordingly.
    • Product Details
    • Company Profile

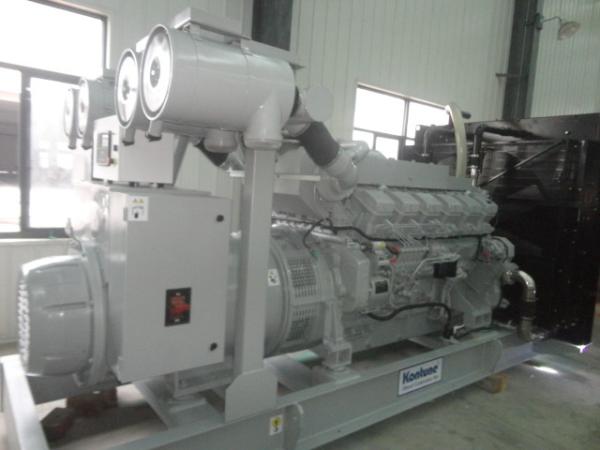

    Super Silent Industrial Portable Generators 1350KW / 1700KVA For Power Station

    Mitsubishi Engine 1350KW/1700KVA Diesel Generator Set Power with engine model S16R-PTA 50HZ

    Detailed description:

    Output Ratings

    Gensets
    Model

    PrimeStandby
    kWkVAkWkVA
    SM1700E51350170014851856



    Ratings and Performance Data

    Engine manufacture
    Mitsubishi Heavy Industries, Ltd.
    Engine brand
    SME Mitsubishi
    Engine model
    S16R-PTA-C
    Engine speed (rpm)
    1500
    Standby power without fan(mKW)
    1620
    Prime power without fan(mKW)
    1480
    Type
    4-Cycle, Water cooled
    Aspiration
    Turbo-charged, After cooler
    Cylinder
    16 cyliner 60°V
    Bore * Stroke (mm)
    170*180
    Displacement (Liter)
    65.37
    Compression Ratio
    14.0:1


    Alternator:

    Control system
    Stamford
    Alternator model
    PI734E
    Control system
    PMG
    A.V.R.
    Included
    Voltage regulation
    ±1%
    Insulation system
    Class H
    Protection
    IP23
    Rated power factor
    0.8
    Winding pitch
    Two thirds
    Winding leads
    6
    Frequency (Hz)
    50
    Voltage (V)
    400
    Phase
    3
    Output ratings prime(kva/kw)
    1775/1420
    Output ratings standby(kva/kw)
    1900/1520
    THF
    <2%
    TIF
    <50
    Max. overspeed (Rev/Min)
    2250
    Bearing
    Single


    Advantages of Diesel Generator Set Powered by Mitsubishi Engine:
    1. International Warranty Service
    2. With ISO9001&CE certification
    3. Spare parts are easy to get from worldwide market with much cheaper price
    4. Coupled with Stamford alternator, Marathon alternator or Wattek alternator
    5. Perfect after-service network
    6. Only 50Hz
    7. Rigorous test including 50% load,75% load,100% load and 110% load
    8. Short delivery time

    The Details of 50hz diesel generator:

    GENSET MODELOUTPUT(kW)OUTPUT(kVA)ENGINEALTERNATOR
    STANDBYPRIMESTNADBYPRIMEMITSUBISHISTAMFORDMARATHONWATTEK
    SM675E5600540750675S6R2-PTAHCI 544FMX-560-4WHI 5F
    SM750E5660600825750S6R2-PTAALVI 634BMX-600-4WHI 6B
    SM1000E588080011001000S12H-PTALVI 634EMX-850-4WHI 6E
    SM1250E51100100013751250S12R-PTALVI 634GMX-1030-4WHI 6G
    SM1375E51200110015001375S12R-PTA2PI 734BMX-1240-4WHI 7B
    SM1500E51320120016501500S12R-PTAA2PI 734CMX-1240-4WHI 7C
    SM1688E51485135018561688S16R-PTAPI 734DMX-1350-4WHI 7D
    SM1875E51650150020631875S16R-PTA2PI 734EMX-1600-4WHI 7E
    SM2000E51760160022002000S16R-PTAA2PI 734FMX-1600-4WHI 7F
    SM2250E52000180025002250S16R2-PTAWPI 734HMX-1800-4WHI 7G


    Container type low noise generating set advantages
    1. Beautiful shape, reasonable structure.
    2. Good tightness, totally enclosed housing, 2 mm steel plate is made and be become, rain, snow, dustproof, in a poor conditions, the sound effect is good, the cabinet with high frequency, intermediate frequency, low-frequency PUR type flame retardant sound-absorbing cotton, effectively reduce the unit out all the different kinds of noise. Muffler by high impedance muffler, reduces the smoke vent noise.
    3. Lifting is convenient, the unit in order to facilitate the transport, in the box set four lifting device.
    Container type low noise generator characteristics
    1. Drop noise standard conform to the provisions of the ISO3744, adapt to the city environmental protection requirements of the mute type casing, but cases of noise down to 65-75 db below.
    2. Good ventilation series and prevent heat radiation measures to ensure the unit always work in appropriate environmental temperature.
    3. Large capacity of the base oil tank, continuous operation for eight hours.
    4. Special drop noise silencing material, dramatically inhibition mechanical noise.
    5. High damping measures to ensure that the balance of the unit operation.
    6. Scientific observation window and emergency stop button, convenient operation and observation running state.
