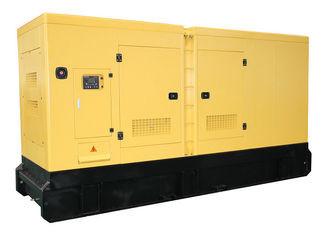

    350KVA / 280KW Low Noise Diesel Generator , 1500RPM Emergency Diesel Generator

    Ask Lasest Price
    Brand Name : STONE POWER
    Model Number : SD350E5
    Certification : ISO/CE
    Price : Negotiable
    Supply Ability : 200 sets per month
    Delivery Time : In one month
    • Product Details
    • Company Profile

    350KVA / 280KW Low Noise Diesel Generator , 1500RPM Emergency Diesel Generator

    Emergency DEUTZ Diesel Generator 350kva / 280kw For Bank BF6M1015C-LA G4
    Detailed Product Description
    Frequency:50Fuel:Diesel
    Maximum Power:350kvaOutput Type:AC Three Phase
    Rate:1500rpmEngine Brand:Deutz
    Engine Model:BF6M1015C-LA G4Alternator Brand:Stamford
    Alternator Model:HCI444EControl System:DSE6020 / DSE7320

    Output Ratings

    Gensets

    Model

    PrimeStandby
    kWkVAkWkVA
    SD350E5280350312390

    Voltage380V-415V220V-240V190V-208V
    Amps487-532842-919972-1064

    Ratings at 0.8 power factor

    1) Ambient reference conditions: 1,000 mbar, 27, 30% relative humidity;

    2) ESP: Standby Power Standby duty, operation under variable load, without over load;

    3) PRP: Prime Power-Continuous duty operation, under variable load 24/24h-10% over load permissible 1 hour/12 hours;


    Ratings and Performance Data

    Engine BrandDeutz
    Engine ModelBF6M1015C-LA G4
    Alternator BrandStamford
    Alternator ModelHCI444E
    Control SystemDSE6020 / DSE7320

    Standard Noise Level@7m

    (Soundproof Sets)

    75db
    Circuit Breaker Type3 Pole MCCB
    Frequency & Phase50Hz & 3PH
    Engine Speed: RPM1500
    Fuel Tank Capacity: LOpen677
    Soundproof
    Fuel Consumption (l/hr)110% Load/
    100% Load67.7
    75% Load/
    50% Load36.8
    Lubricant15W40-CF4 Upgrade
    Total Lubricant Capacity (L)36.7

    Features

    • Standard open type is good to working in engine room with ventilation system.

    • The super silent model ( up to 50kw ) has electronic cooling fan and special design low noise level canopy. which is specialized for low noise level environment, such as office building, villa, museum.

    • Standard soundproof type ( IP21 ) will be working perfectly in the open air

    • All standard type can be working in 3rd explosive area for mining industry, special design will be suitable for 2nd explosive area.

    • All functional components are modular design, for fast repair, replace, and reduce stock, which can satisfy rental business.

    • 50℃ radiator

    • IP54 ( soundproof sets ), IP56 ( control system )

    • Base fuel tank for at least 8 hours running

    • For friendly experience, all I/O control interface and daily maintenance parts are combined in one side.

    Optional

    EngineAlternatorGeneratorFuel SystemCanopy

    • Water Jacket Preheater
    • Oil Preheater
    • Winding Temperature
    • Measuring Instrument
    • Alternator Preheater
    • PMG
    • Anti-damp and anti-corrosion treatment
    • Anti-condensation heater
    Toolkit with the machine
    • Low fuel level alarm
    • Automatic fuel feeding system
    • Fuel T-valves
    • Trailer
    • Galvanized

    Lubricating SystemExhaust SystemCooling SystemControl SystemVoltages
    Oil with the machineProtection board from hotness
    • Front heat protection
    • Coolant ( - 30 °C )
    • Remote control panel
    • ATS
    • 415 / 240 V
    • 400 / 230 V
    • 380 / 220 V

    Package & Payment & Delivery Date & Warranty

    Package:Plastic Package.

    Payment: by 30 % T / T as deposit, 70% balance should be paid 10 days before shipment. Or 100 % L / C at sight.

    Delivery: 25 days after we get the down payment.

    Warranty: All Topower goods are warranted in accordance with our warranty terms for a period of 12 months from date of despatch or 1000 running hours from date of commissioning whichever date occurs the sooner.


    The Details of Deutz Diesel Generator

    Emergency DEUTZ Diesel Generator 350kva / 280kw For Bank BF6M1015C-LA G4

    Our Cilents Come From All of The World

    Emergency DEUTZ Diesel Generator 350kva / 280kw For Bank BF6M1015C-LA G4Nanjing Stone Power Co., Ltd is a manufacturer who focuses on generator sets (on-site, house, commercial, removable) and related products from 10KVA-2200KVA (6.4KW-1600KW), Stone Power brand Gen-set powered by world famous engines Cummins (20kw-1200kw), Perkins (7.2kw-1800kw), Deutz (24kw-1600kw), Isuzu (20kw-64kw) and YTO (8KW-400KW), diesel engines coupled to Newage Stamford alternators, Marathon Alternators Mecc alte alternators or Stone Power AC alternator, with REASONABLE PRICE and the HIGH QUALITY. The Gen-set categories include 50HZ,60HZ,1 phase, 3 phases, open, soundproof and removable types. Stone POWER is the generators manufacturer to combine the western concept with china productivity. So we believe that Stone POWER could support you to become most competitive. Welcome your inquiry!
