Industrial FG WILSON Generator Set , 40KW 50KVA Portable Diesel Generator Set

    Buy cheap Industrial FG WILSON Generator Set , 40KW 50KVA Portable Diesel Generator Set from wholesalers

    Buy cheap Industrial FG WILSON Generator Set , 40KW 50KVA Portable Diesel Generator Set from wholesalers
    • Buy cheap Industrial FG WILSON Generator Set , 40KW 50KVA Portable Diesel Generator Set from wholesalers
    • Buy cheap Industrial FG WILSON Generator Set , 40KW 50KVA Portable Diesel Generator Set from wholesalers

    Industrial FG WILSON Generator Set , 40KW 50KVA Portable Diesel Generator Set

    Ask Lasest Price
    Brand Name : Stone Power
    Model Number : SY50M5
    Certification : ISO/CE
    Price : Negotiable
    Delivery Time : 25 days
    Supply Ability : 200sets/month
    • Product Details
    • Company Profile

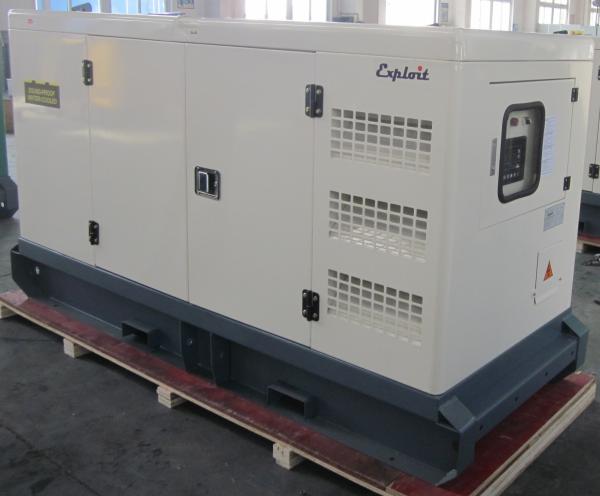

    Industrial FG WILSON Generator Set , 40KW 50KVA Portable Diesel Generator Set

    40KW 50KVA YTO (FG WILLSION OEM) OPEN&SILENT GENSET


    Gensets ModelSY50M5
    SETRated power(kW/kVA)40/50
    Max.power(kW/kVA)44/55
    Frequency(Hz)50/60
    Noice level for silent type (Db)75
    ENGINEEngine4 Stroke, water cooled
    Model typeLR4B5-D
    12 hours rated power(kw)48
    Cylinders4
    Bore×stroke(mm)105x1305
    Intake MethodNatural aspired
    Displacement(L)4.95
    Fuel consumption(g/kw.h)215
    Cooling starting methodwater cooled
    Engine manufacturerYTO (FG WILLSION OEM)
    ALTERNATORModelWHI 224D
    Alternator manufacturerWattek
    Rated power(kW/kVA)40/50
    Rated currency(A)72
    Rated voltage(V)230/400,240/415 or other
    Power factor(cosø)0.8(Lagging)
    Phase / Rotary speed3-phase, 1500rpm
    ExcitationSelf- exciting,
    Voltage regulationAVR ,Automatic
    Genset dimension(open type) L×W×H(mm)1860*900*1340
    Genset dimension(silent type) L×W×H(mm)2494*963*1542

    Technical parameters of Control Panel:
    BrandDeepseaModel6020Industrial FG WILSON Generator Set , 40KW 50KVA Portable Diesel Generator Set
    Function:

    • Start or Stop Generator set manually / automatically
    • High Coolant temperature protection
    • Low Oil pressure protection
    • Over load protection
    • Generator over/under frequency protection
    • Over speed protection

    Note:Indicate this function depend on the set points of the controller in field.

    Optional accessories
    Engine• Heater • Battery Charger
    Alternator• Permanent Magnet Generator(PMG)
    Control system• Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling System
    Fuel system• Daily Fuel Tank • Water Separator • Fuel Level Sensor
    Others• Rainproof Type • Soundproof Type • Trailer Type • Extra spare Parts

    Standard AccessoriesOpen typeSilent type
    Sound-proof & Weather-proof CanopyN/A
    Daily base fuel tank. 8 hours capacityN/A
    Single-bearing generator again drops
    Intelligent LED display control panel
    Speed governor
    Electric start and 12v charger
    Standard air filter, oil filter, fuel filter
    Cooling water tank
    High-efficient silencer.
    Exhaust elbow
    Storage battery
    Steel base-frame against vibration
    Soft pipe for fuel and handle for lube going-out
    Operation& Maintenance manual.

     DrawingDimension
    Industrial FG WILSON Generator Set , 40KW 50KVA Portable Diesel Generator Set

    Open type: 1400*680*1100 mm

    Industrial FG WILSON Generator Set , 40KW 50KVA Portable Diesel Generator Set

    Silent type: 2150*900*1235 mm



    Remark:

    Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(EQV ISO8528); a 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.

    Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

    Warranty:Stone Power provides a full line of brand new and high quality products. Each Genset is strictly factory tested before delivery.

    We offer client warranty of 12 months or 1,000 running hours warranty which comes first (longer warranty period can be offered with extra charge)

    Quick after service and parts are available from Stone Power or distributors in your location.
