3 Pole MCCB PERKINS Diesel Generator 160KW 198KVA With Industrial Silencer

    Buy cheap 3 Pole MCCB PERKINS Diesel Generator 160KW 198KVA With Industrial Silencer from wholesalers

    Buy cheap 3 Pole MCCB PERKINS Diesel Generator 160KW 198KVA With Industrial Silencer from wholesalers
    • Buy cheap 3 Pole MCCB PERKINS Diesel Generator 160KW 198KVA With Industrial Silencer from wholesalers
    • Buy cheap 3 Pole MCCB PERKINS Diesel Generator 160KW 198KVA With Industrial Silencer from wholesalers

    3 Pole MCCB PERKINS Diesel Generator 160KW 198KVA With Industrial Silencer

    Ask Lasest Price
    Brand Name : STONE POWER
    Model Number : SP198M5
    Certification : CE ISO
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T, Western Union
    Supply Ability : 200 SET / MONTH
    Delivery Time : 25 days after we get the down payment.
    • Product Details
    • Company Profile

    3 Pole MCCB PERKINS Diesel Generator 160KW 198KVA With Industrial Silencer

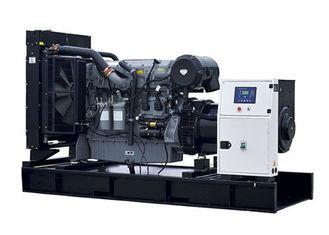

    New Design Open Type 198kva Diesel Generating Set Powered by Perkins Engine


    Output Ratings


    Gensets

    Model

    PrimeStandby
    kWkVAkWkVA
    SP198M5158198174200

    Dimensions and Weights


    ModelSP198M5
    Open

    DIM:

    (mm)

    L2600
    W1250
    H1774
    Weights (kg)2050

    Qty.

    (Unit)

    20ft GP2
    40 ft GP4
    40 ft GP HQ4
    Exhaust port Diameter (mm)78

    Ratings and Performance Data


    Engine BrandPerkins
    Engine Model1106A-70TAG3
    Alternator BrandStamford
    Alternator ModelUCI274H
    Control SystemDSE6020 / DSE7320

    Standard Noise Level@7m

    (Open Sets)

    92
    Circuit Breaker Type3 Pole MCCB
    Frequency & Phase60Hz & 3PH
    Engine Speed: RPM1500
    Fuel Tank Capacity: LOpen452
    Soundproof
    Fuel Consumption (l/hr)110% Load49.1
    100% Load45.2
    75% Load35
    50% Load24
    Lubricant15W40
    Total Lubricant Capacity (L)26.4

    The Features of Perkins 158kw/198kva Diesel Generating Set:


    1. Standard open type is good to working in engine room with ventilation system.

    2. The super silent model (up to 50kw) has electronic cooling fan and special design low noise level canopy. which is specialized for low noise level environment, such as office building, villa, museum.

    3. Standard soundproof type(IP21) will be working perfectly in the open air

    4. All standard type can be working in 3rd explosive area for mining industry, special design will be suitable for 2nd explosive area.

    5. All functional components are modular design, for fast repair, replace, and reduce stock, which can satisfy rental business.

    6. 50℃ radiator

    7. IP54 (soundproof sets), IP56 (control system)

    8. Base fuel tank for at least 8 hours running

    9. For friendly experience, all I/O control interface and daily maintenance parts are combined in one side.


    STONE Power standard Configuration of Diesel Generating Set Powered by Perkins Engine


    1) Perkins engine
    2) Stamford alternator (Marathon, Mecc alte Wattek brand for option)
    3) Deepsea DSE6020 control panel
    4) CHINT brand circuit breaker
    5) 8 Working Hours Base Fuel Tank (for the genset ≤ 650kVA prime, only Base Frame for other models)
    6) Anti-Vibration Mounted System
    7) Battery, battery charger and battery isolator switch
    8) Industrial silencer and flexible exhaust hose


    What is the advantages of your Diesel Generating Set Powered by Perkins Engine?


    1. International Warranty Service
    2. Short delivery time, as we always have Perkins engine in stock
    3. With ISO9001&CE certification
    4. Spare parts are easy to get from worldwide market with much cheaper price
    5. Coupled with Stamford alternator, Marathon alternator or Chinese Wattek alternator
    6. Perfect after-service network
    7. Both 50Hz and 60Hz
    8. Rigorous test including 50% load,75% load,100% load and 110% load


    Q1: How is your Package & Payment & Delivery Date & Warranty?

    A.1) Package: Plastic Package.

    A.2) Payment: by 30% T/T as deposit, 70% balance should be paid 10 days before shipment. Or 100% L/C at sight.

    A.3) Delivery: 25 days after we get the down payment.

    A.4) Warranty: All Topower goods are warranted in accordance with our warranty terms for a period of 12 months from date of dispatch or 1000 running hours from date of commissioning whichever date occurs the sooner.

    Q2: Any advantages about your company?

    Answers: STONEPOWER Brand Diesel Generators

    ---- Middle-high Positioning;

    ---- 25days Lead-time;

    ---- Designed by CAE and CAF Software;

    ---- Got the ISO and CE certificate;

    ---- High quality with the best price can help you get more benefit and beat your competitors;

    ---- Cummins, Perkins, Detuz etc. famous engine brands optional.
