6 Cylinder 200KW/250KVA 400V/230V 50HZ Silent trailer mounted Diesel Generator

Technical parameters of Control Panel:
Brand	Deep Sea	Model	6020
Function:
• Start or Stop Generator set manually / automatically • Open controller output can be defined as Pre-heat/Idle output • High Coolant temperature protection • Low Oil pressure protection • Over load protection • Generator over/under frequency protection • Generator over/under/unbalance voltage Protection • Over speed protection • AMF
Note:Indicate this function depend on the set points of the controller in field.

Drawing	Dimension
	Open type: 2400*900*1450 mm
	Slient type: 3500*1380*1790 mm

URemark:

Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(EQV ISO8528); a 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.

Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Features of Trailer Generator Sets:
With all the advantages of soundproof sets.
Suitable for outdoor works.
Towing device is set aside on the wheel chassis to keep balance.
Equipped with warning lamp according to transport safety standards.
Cable rack for option.
Single axle or double-axle, mechanical or auto brake for option, meeting various requirements.
Convenient fuel filling system; the fuel fill cap is lockable.

2 wheels&4 wheels tailer type for option.

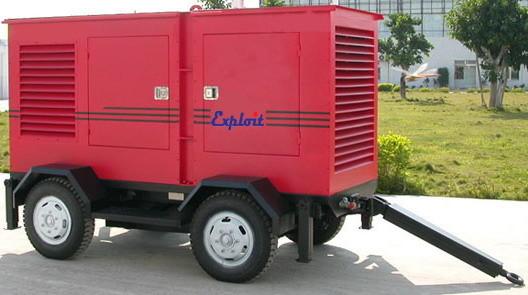

Photoes for reference:
