    Silent Type Trailer Mounted Diesel Generator , 20KW / 25KVA AC Three Phase Diesel Generator

    Ask Lasest Price
    Brand Name : STONE POWER
    Model Number : SC30E5T
    Certification : ISO/CE
    Price : Negotiable
    Supply Ability : 100 units per month
    • Product Details
    • Company Profile

    Silent Type Trailer Mounted Diesel Generator , 20KW / 25KVA AC Three Phase Diesel Generator

    20kw/25kva silent type trailer mounted generator with axles three phase AC


    Generator setModel No.SC25E5
    Standby power28KVA/22KW
    Rated power25KVA/20KW
    Output voltage230/400
    Rated speed (r/min.)1500
    Noise level(7m)72dB
    Power factorCOSΦ=0.8(lagging)
    Phase/wires3 phase 4 wires
    Start modeElectric
    Fuel consumption5.2L/h (Average)
    Rated currency(amps)36
    ProtectionLow oil-pressure, High water temperature, Over-speed, Over-current.
    EngineBrandCummins
    Model4B3.9-G2
    Original:China
    Cylinders4
    Fuel0# light diesel
    Inter-CoolingN/A
    Comprssion Ratio16.5:1
    Engine Power (prime/standby)24KW/27KW
    AspirationNA
    Governor/ClassElectric
    Bore and stroke102×120 mm
    Start modeDC24V electric start
    Cylinders LayoutIn Line
    Displacement3.9 L
    AlternatorBrandSTAMFORD
    ModelPI 144E
    ProtectionIP23
    Frequency fluctuation≤±0.5 %
    Voltage distortion<4%
    Prime Power25KVA(20KW)
    OriginalChina
    Rated voltage400/230 V
    Frequency regulation≤±0.5 %(stable)
    Voltage controlAVR

    Technical parameters of Control Panel:
    BrandDeepSeaModelDSE6020Silent Type Trailer Mounted Diesel Generator , 20KW / 25KVA AC Three Phase Diesel Generator
    Function:

    • Start or Stop Generator set manually / automatically

    • Open controller output can be defined as Pre-heat/Idle output

    • High Coolant temperature protection

    • Low Oil pressure protection

    • Over load protection

    • Generator over/under frequency protection

    • Generator over/under/unbalance voltage Protection

    • Over speed protection

    • AMF

    Note:Indicate this function depend on the set points of the controller in field.

    Optional accessories
    Engine• Heater • Battery Charger
    Alternator• Permanent Magnet Generator(PMG)
    Control system• Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling System
    Fuel system• Daily Fuel Tank • Water Separator • Fuel Level Sensor
    Others• Rainproof Type • Soundproof Type • Trailer Type • Extra spare Parts

    Standard AccessoriesOpen typeSilent type
    Sound-proof & Weather-proof CanopyN/A
    Daily base fuel tank. 8 hours capacityN/A
    Single-bearing generator again drops
    Intelligent LED display control panel
    Speed governor
    Electric start and 12v charger
    Standard air filter, oil filter, fuel filter
    Cooling water tank
    High-efficient silencer.
    Exhaust elbow
    Storage battery
    Steel base-frame against vibration
    Soft pipe for fuel and handle for lube going-out
    Operation& Maintenance manual.

     DrawingDimension
    Silent Type Trailer Mounted Diesel Generator , 20KW / 25KVA AC Three Phase Diesel Generator

    Open type: 1780*710*1250mm


    Silent Type Trailer Mounted Diesel Generator , 20KW / 25KVA AC Three Phase Diesel Generator

    Silent type: 2550*1000*1440 mm



    Remark:


    Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(EQV ISO8528); a 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.


    Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.


    Warranty:Stone Power provides a full line of brand new and high quality products. Each Genset is strictly factory tested before delivery.


    We offer client warranty of 12 months or 1,000 running hours warranty which comes first (longer warranty period can be offered with extra charge)

    Cummins engine and Stamford alternator enjoy wroldwise after service offered by Cummins and Stamford global after service network.


    Quick after service and parts are available from Stone Power or distributors in your location.


    Features of Trailer Generator Sets:
    With all the advantages of soundproof sets.
    Suitable for outdoor works.
    Towing device is set aside on the wheel chassis to keep balance.
    Equipped with warning lamp according to transport safety standards.
    Cable rack for option.
    Single axle or double-axle, mechanical or auto brake for option, meeting various requirements.
    Convenient fuel filling system; the fuel fill cap is lockable.

    2 wheels&4 wheels tailer type for option.

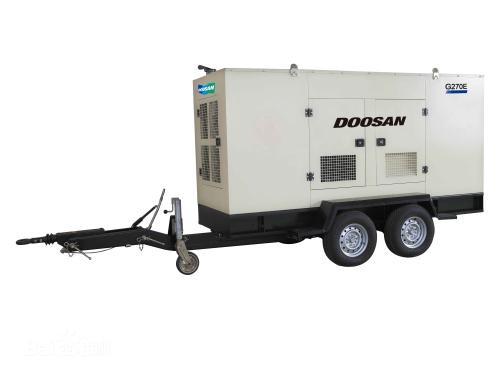

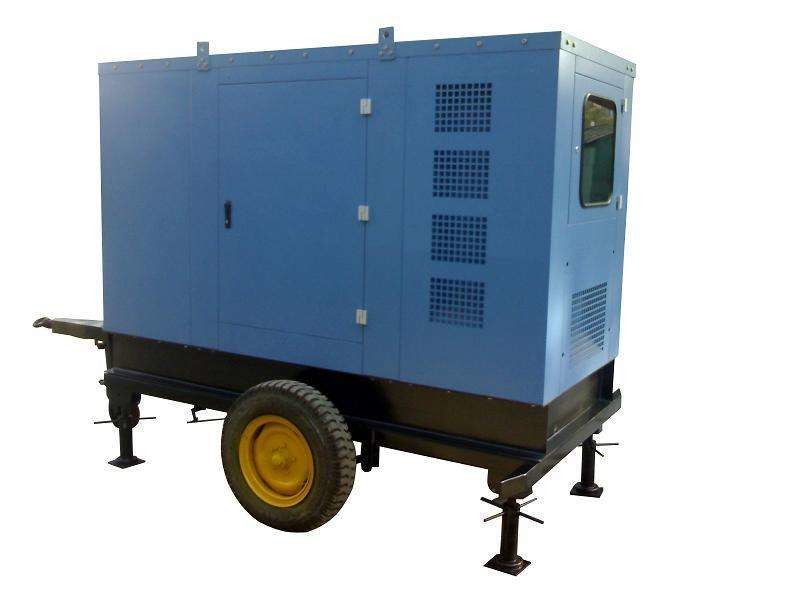

    Photoes for reference:
