Water Inter - Cooling Emergency Generators Commercial Low Oil Pressure Protection

    Buy cheap Water Inter - Cooling Emergency Generators Commercial Low Oil Pressure Protection from wholesalers

    Buy cheap Water Inter - Cooling Emergency Generators Commercial Low Oil Pressure Protection from wholesalers
    • Buy cheap Water Inter - Cooling Emergency Generators Commercial Low Oil Pressure Protection from wholesalers
    • Buy cheap Water Inter - Cooling Emergency Generators Commercial Low Oil Pressure Protection from wholesalers

    Water Inter - Cooling Emergency Generators Commercial Low Oil Pressure Protection

    Ask Lasest Price
    Brand Name : STONE POWER
    Model Number : SC625E5
    Certification : ISO/CE
    Price : Negotiable
    • Product Details
    • Company Profile

    Water Inter - Cooling Emergency Generators Commercial Low Oil Pressure Protection

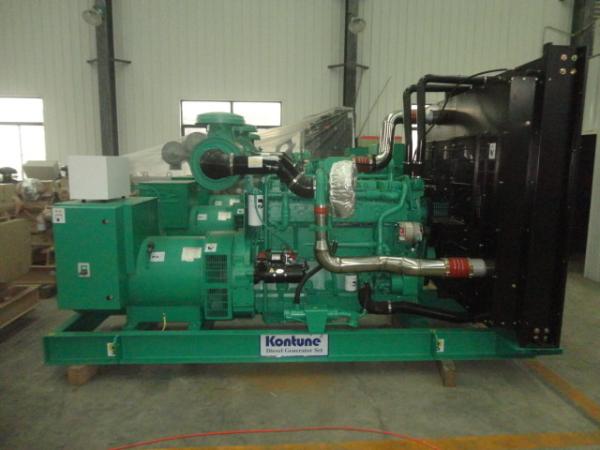

    50Hz 400V 3 phase Emergency cummins diesel generator 500kva/400kw KTAA19-G6A


    Generator setModel No.SC625E5
    Standby power688KVA/550KW
    Rated power625KVA/500KW
    Output voltage230/400
    Rated speed (r/min.)1500
    Noise level(7m)80dB
    Power factorCOSΦ=0.8(lagging)
    Phase/wires3 phase 4 wires
    Start modeElectric
    Fuel consumption95.2L/h(average)
    Rated currency(amps)900
    ProtectionLow oil-pressure, High water temperature, Over-speed, Over-current.
    EngineBrandCummins
    ModelKTAA19-G6A
    Original:China
    Cylinders6
    Fuel0# light diesel
    Inter-Coolingwater inter-cooling
    Compression Ratio:13.0:1

    Engine Power

    (Standby)

    610KW
    AspirationTurbocharged / Air-air inter-cooling
    Governor/ClassElectric
    Bore and stroke159×159 mm
    Start modeDC24V electric start
    Cylinders LayoutIn Line
    Displacement19 L
    AlternatorBrandSTAMOFRD
    ModelHCI 544FS
    ProtectionIP23
    Frequency fluctuation≤±0.5 %
    Voltage distortion<4%
    Prime Power625KVA(500KW)
    OriginalChina
    Rated voltage400/230 V
    Frequency regulation≤±0.5 %(stable)
    Voltage controlAVR

    Technical parameters of Control Panel:
    BrandDeep SeaModel6020Water Inter - Cooling Emergency Generators Commercial Low Oil Pressure Protection
    Function:

    • Start or Stop Generator set manually / automatically

    • Open controller output can be defined as Pre-heat/Idle output

    • High Coolant temperature protection

    • Low Oil pressure protection

    • Over load protection

    • Generator over/under frequency protection

    • Generator over/under/unbalance voltage Protection

    • Over speed protection

    • AMF

    Note:Indicate this function depend on the set points of the controller in field.

    Optional accessories
    Engine• Heater • Battery Charger
    Alternator• Permanent Magnet Generator(PMG)
    Control system• Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling System
    Fuel system• Daily Fuel Tank • Water Separator • Fuel Level Sensor
    Others• Rainproof Type • Soundproof Type • Trailer Type • Extra spare Parts

    Standard AccessoriesOpen typeSilent type
    Sound-proof & Weather-proof CanopyN/A
    Daily base fuel tank. 8 hours capacityN/A
    Single-bearing generator again drops
    Intelligent LED display control panel
    Speed governor
    Electric start and 12v charger
    Standard air filter, oil filter, fuel filter
    Cooling water tank
    High-efficient silencer.
    Exhaust elbow
    Storage battery
    Steel base-frame against vibration
    Soft pipe for fuel and handle for lube going-out
    Operation& Maintenance manual.

     DrawingDimension
    Water Inter - Cooling Emergency Generators Commercial Low Oil Pressure Protection

    Open type:

    3650*1700*2250 mm

    Water Inter - Cooling Emergency Generators Commercial Low Oil Pressure Protection

    Slient type:

    4865*1950*2550 mm




    Nanjing Stone Power Co., Ltd is a manufacturer who focuses on generator sets (on-site, house, commercial, removable) and related products from 10KVA-2200KVA (6.4KW-1600KW), Stone Power brand Gen-set powered by world famous engines Cummins (20kw-1200kw), Perkins (7.2kw-1800kw), Deutz (24kw-1600kw), Isuzu (20kw-64kw) and YTO (8KW-400KW), diesel engines coupled to Newage Stamford alternators, Marathon Alternators Mecc alte alternators or Stone Power AC alternator, with REASONABLE PRICE and the HIGH QUALITY. The Gen-set categories include 50HZ,60HZ,1 phase, 3 phases, open, soundproof and removable types. Stone POWER is the generators manufacturer to combine the western concept with china productivity. So we believe that Stone POWER could support you to become most competitive. Welcome your inquiry!
