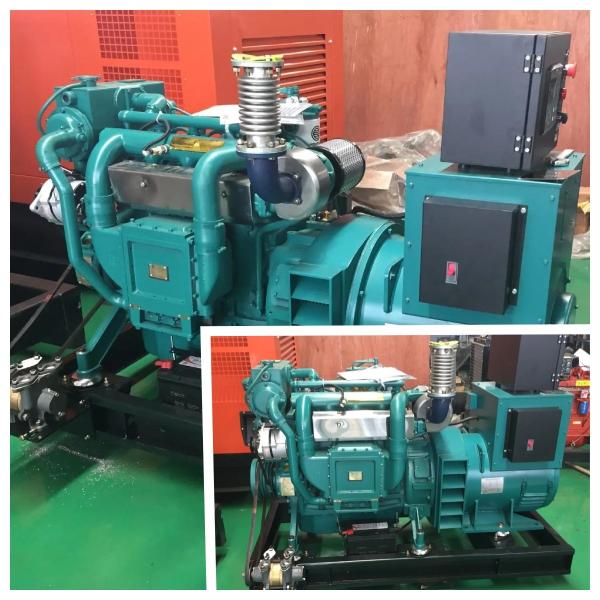

Leroy Somer Weichai Diesel Engine Generator Set Genset Standby 33kw / 41kva

    Buy cheap Leroy Somer Weichai Diesel Engine Generator Set Genset Standby 33kw / 41kva from wholesalers

    Buy cheap Leroy Somer Weichai Diesel Engine Generator Set Genset Standby 33kw / 41kva from wholesalers
    • Buy cheap Leroy Somer Weichai Diesel Engine Generator Set Genset Standby 33kw / 41kva from wholesalers
    • Buy cheap Leroy Somer Weichai Diesel Engine Generator Set Genset Standby 33kw / 41kva from wholesalers

    Leroy Somer Weichai Diesel Engine Generator Set Genset Standby 33kw / 41kva

    Ask Lasest Price
    Brand Name : Leroy SomerWeichai/Stone Powe
    Model Number : SW38M5
    Certification : CE ISO9000
    Price : $2619~$4119
    Payment Terms : T/T
    Supply Ability : 100UNITS/PERMONTH
    Delivery Time : 18-42
    • Product Details
    • Company Profile

    Leroy Somer Weichai Diesel Engine Generator Set Genset Standby 33kw / 41kva

    Why to choose weichai diesel generator?As weichai is one of the biggest diesel engine manufacture in the world now,sold more than 1 million units diesel engines in 2021 And its products are exported to more than 110 countries and regions.

    Weichai has global after service network all over the world and enjoy global warranty.

    Our Weichai generator adopt original Weichai engine and Stafmord/Marathon/Leroy Somer,etc alternator,with high quality and good price.

    Generator setModel No.SW38M5
    Standby power41KVA/33KW
    Rated power38KVA/30KW
    Output voltage230/400
    Rated speed (r/min.)1500
    Noise level(7m)72dB (silent type)
    Power factorCOSΦ=0.8(lagging)
    Phase/wires3 phase 4 wires
    Start modeElectric
    Fuel consumption5.2L/h (Average)
    Rated currency(amps)36
    ProtectionLow oil-pressure, High water temperature, Over-speed, Over-current.
    EngineBrandWeichai
    ModelWP2.3D40E200
    Original:China
    Cylinders4
    Fuel0# light diesel
    Inter-CoolingN/A
    Compression Ratio17.5:1
    Engine Power (prime/standby)36KW/40KW
    AspirationNA
    Governor/ClassMechanical
    Bore and stroke89×92 mm
    Start modeDC24V electric start
    Cylinders LayoutIn Line
    Displacement3.9 L
    AlternatorBrandLeroy Somer
    ModelTAL-A42-E
    ProtectionIP23
    Frequency fluctuation≤±0.5 %
    Voltage distortion<4%
    Prime Power37.5KVA(30KW)
    OriginalChina
    Rated voltage400/230 V
    Frequency regulation≤±0.5 %(stable)
    Voltage controlAVR

    Technical parameters of Control Panel:
    BrandSmartgenModel6110Weichai Diesel Engine Generator Set Soundproof Genset 120kw / 150kva 0
    Function:

    • Start or Stop Generator set manually / automatically

    • Open controller output can be defined as Pre-heat/Idle output

    • High Coolant temperature protection

    • Low Oil pressure protection

    • Over load protection

    • Generator over/under frequency protection

    • Generator over/under/unbalance voltage Protection

    • Over speed protection

    • AMF

    Note:Indicate this function depend on the set points of the controller in field.

    Optional accessories
    Engine• Heater • Battery Charger
    Alternator• Permanent Magnet Generator(PMG)
    Control system• Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling System
    Fuel system• Daily Fuel Tank • Water Separator • Fuel Level Sensor
    Others• Rainproof Type • Soundproof Type • Trailer Type • Extra spare Parts

    Standard AccessoriesOpen typeSilent type
    Sound-proof & Weather-proof CanopyN/A
    Daily base fuel tank. 8 hours capacityOption
    Single-bearing generator again drops
    Intelligent LED display control panel
    Speed governor
    Electric start and 12v charger
    Standard air filter, oil filter, fuel filter
    Cooling water tank
    High-efficient silencer.
    Circuit breaker
    Exhaust elbow
    Storage battery
    Steel base-frame against vibration
    Soft pipe for fuel and handle for lube going-out
    Operation& Maintenance manual.

    Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(EQV ISO8528); a 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.


    Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.


    Warranty: Stone Power provides a full line of brand new and high quality products. Each Genset is strictly factory tested before delivery.


    We offer client warranty of 12 months or 1,000 running hours warranty which comes first (longer warranty period can be offered with extra charge)

    Weichai engine enjoy worldwise after service offered by Weichai global after service network.

    Leroy Somer alternator adopt Stamford technology and enjoy 2 years warranty.


    Quick after service and parts are available from Stone Power or distributors in your location.
