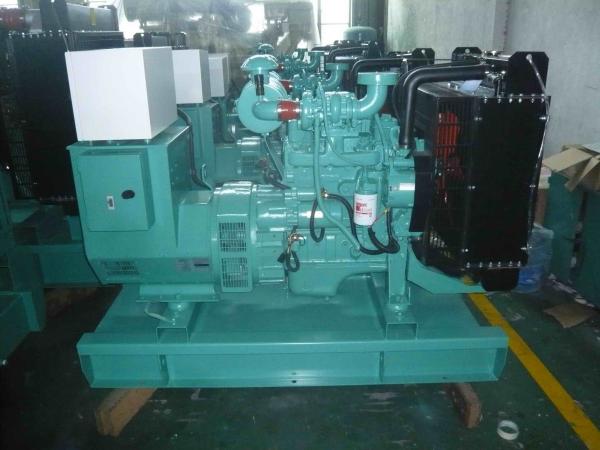

Open Type / Canopy Diesel Generator 100KVA / 80KW Prime Power Output Voltage 230 / 400V

    Buy cheap Open Type / Canopy Diesel Generator 100KVA / 80KW Prime Power Output Voltage 230 / 400V from wholesalers

    Buy cheap Open Type / Canopy Diesel Generator 100KVA / 80KW Prime Power Output Voltage 230 / 400V from wholesalers
    • Buy cheap Open Type / Canopy Diesel Generator 100KVA / 80KW Prime Power Output Voltage 230 / 400V from wholesalers
    • Buy cheap Open Type / Canopy Diesel Generator 100KVA / 80KW Prime Power Output Voltage 230 / 400V from wholesalers

    Open Type / Canopy Diesel Generator 100KVA / 80KW Prime Power Output Voltage 230 / 400V

    Ask Lasest Price
    Brand Name : STONE POWER
    Model Number : SC100E5
    Certification : CE, ISO, UL
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T, Western Union
    Supply Ability : 200 SETS / MONTH
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    Open Type / Canopy Diesel Generator 100KVA / 80KW Prime Power Output Voltage 230 / 400V


    Cummins Open Diesel Generator Electric Start Mode


    Generator setModel No.SC100E5
    Standby power110KVA/88KW
    Rated power100KVA/80KW
    Output voltage400V/3 phase
    Rated speed (r/min.)1500
    Noise level(7m)70dB (silent type)
    Power factorCOSΦ=0.8(lagging)
    Phase/wires3 phase 4 wires
    Start modeElectric
    Fuel consumption15.6L/h (average)
    Rated currency(amps)144
    ProtectionLow oil-pressure, High water temperature, Over-speed, Over-current.
    EngineBrandCummins
    Model4BTAA3.9-G3
    Cylinders4
    Fuel0# light diesel
    Cylinders Layout4 in Line
    Compression Ratio18.0:1

    Engine Power

    (prime/standby)

    96KW/106KW
    AspirationCharge air cooled
    Governor/ClassElectronic
    Governor Regulation<5%
    Bore and stroke102×120 mm
    Start modeDC24V electric start
    Cooling systemRadiator in copper
    Displacement3.9 L
    AlternatorBrandLeroy Somer
    ModelTAL-A44-D
    ProtectionIP23
    Insulation classH
    Freuqency50 Hz
    Frequency fluctuation≤±0.5 %
    Voltage distortion<4%
    Anti-Condensation Heaterincluded
    Continuous Rating80KW/100KVA
    Rated voltage380-415V adjustable
    Frequency regulation≤±0.5 %(stable)
    Voltage controlAVR

    Technical parameters of Control Panel:
    BrandSmartgenModelHGM6110
    Function:

    • Start or Stop Generator set manually / automatically

    • Open controller output can be defined as Pre-heat/Idle output

    • High Coolant temperature protection

    • Low Oil pressure protection

    • Over load protection

    • Generator over/under frequency protection

    • Generator over/under/unbalance voltage Protection

    • Over speed protection

    Note:Indicate this function depend on the set points of the controller in field.
    Optional accessories
    Engine• Heater • Battery Charger
    Alternator• Permanent Magnet Generator(PMG)
    Control system• Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling System
    Fuel system• Daily Fuel Tank • Water Separator • Fuel Level Sensor
    Others• Rainproof Type • Soundproof Type • Trailer Type • Extra spare Parts

    Standard AccessoriesOpen typeSilent type
    Sound-proof & Weather-proof CanopyN/A
    Daily base fuel tank. 8 hours capacityN/A
    Single-bearing generator again drops
    Intelligent LED display control panel
    Speed governor
    Electric start and 12v charger
    Standard air filter, oil filter, fuel filter
    Cooling water tank
    High-efficient silencer.
    Exhaust elbow
    Storage battery
    Steel base-frame against vibration
    Soft pipe for fuel and handle for lube going-out
    Operation& Maintenance manual.

     DrawingDimension

    Open Type

    1800*800*1500mm

    850 kg

    Silent Type

    2800*1140*1600 mm

    1,530 kg


    Remark:


    Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(EQV ISO8528); a 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.


    Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.


    Warranty:Stone Power provides a full line of brand new and high quality products. Each Genset is strictly factory tested before delivery.


    We offer client warranty of 12 months or 1,000 running hours warranty which comes first (longer warranty period can be offered with extra charge)

    Perkins engine and Leroy Somer alternator enjoy wroldwise after service offered by Perkins and Leroy Somer global after service network.


    Quick after service and parts are available from Stone Power or distributors in your location.



    Package & Payment & Delivery Date & Warranty

    Package:Plastic Package.

    Payment: by 30 % T / T as deposit, 70% balance should be paid 10 days before shipment. Or 100 % L / C at sight.

    Delivery: 25 days after we get the down payment.

    Warranty: All Topower goods are warranted in accordance with our warranty terms for a period of 12 months from date of despatch or 1000 running hours from date of commissioning whichever date occurs the sooner.
