500kw/625kva Prime Rating Baudouin Diesel Generator Set 2 Years Global Warranty 50hz 400v/415v

    Buy cheap 500kw/625kva Prime Rating Baudouin Diesel Generator Set 2 Years Global Warranty 50hz 400v/415v from wholesalers

    Buy cheap 500kw/625kva Prime Rating Baudouin Diesel Generator Set 2 Years Global Warranty 50hz 400v/415v from wholesalers
    • Buy cheap 500kw/625kva Prime Rating Baudouin Diesel Generator Set 2 Years Global Warranty 50hz 400v/415v from wholesalers
    • Buy cheap 500kw/625kva Prime Rating Baudouin Diesel Generator Set 2 Years Global Warranty 50hz 400v/415v from wholesalers
    • Buy cheap 500kw/625kva Prime Rating Baudouin Diesel Generator Set 2 Years Global Warranty 50hz 400v/415v from wholesalers

    500kw/625kva Prime Rating Baudouin Diesel Generator Set 2 Years Global Warranty 50hz 400v/415v

    Ask Lasest Price
    Brand Name : Baudouin
    Model Number : SW625E5
    Certification : CE, ISO, UL
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T, Western Union
    Supply Ability : 30 SETS / MONTH
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    500kw/625kva Prime Rating Baudouin Diesel Generator Set 2 Years Global Warranty 50hz 400v/415v


    Generator setModel No.SW625E5
    Standby power688KVA/550KW
    Rated power625KVA/500KW
    Output voltage415/240V
    Rated speed (r/min.)1500
    Noise level(7m)80dB (silent type)
    Power factorCOSΦ=0.8
    Phase/wires3 phase 4 wires
    Start modeElectric
    Fuel consumption

    132L/h (100% load)

    99L/h (75% load)

    Rated currency(amps)870
    ProtectionLow oil-pressure, High water temperature, Over-speed, Over-current.

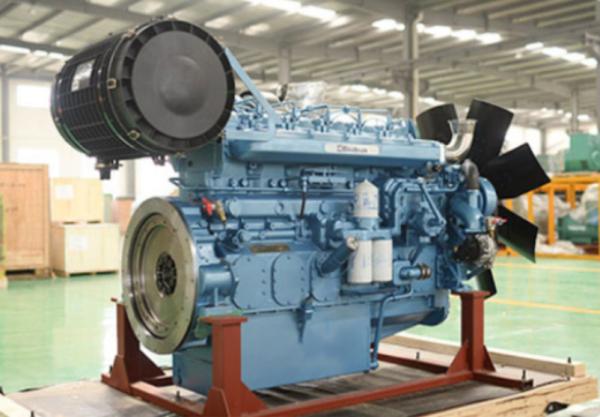

    EngineBrandWeichai Baudouin
    Model6M33D633E200
    Original:China
    Cylinders6
    Fuel0# light diesel
    Oil Capacity36/61 L
    Inter-Coolingwater inter-cooling
    Compression Ratio:15:1

    Engine Power

    (prime/standby)

    575KW/633KW
    AspirationTurbocharged/Aftercooled
    Governor/ClassElectric
    Bore and stroke150×185 mm
    Start modeDC24V electric start
    Cylinders LayoutL in line
    Displacement19.6 L
    AlternatorBrandSH STF
    TypeAC brushless
    ModelSTF500-1-4
    ProtectionIP23
    Insulation classH
    Materialcopper
    Frequency fluctuation≤±0.5 %
    Voltage distortion<4%
    Output (Prime/Standby)625kva/688kva
    OriginChina
    Frequency50 Hz
    Rated voltage415/240 V
    Frequency regulation≤±0.5 %(stable)
    Voltage controlAVR

    Technical parameters of Control Panel:
    BrandSmartgenModelHGM6110N
    Function:

    • Start or Stop Generator set manually / automatically

    • Open controller output can be defined as Pre-heat/Idle output

    • High Coolant temperature protection

    • Low Oil pressure protection

    • Over load protection

    • Generator over/under frequency protection

    • Generator over/under/unbalance voltage Protection

    Over speed protection

    Note:Indicate this function depend on the set points of the controller in field.

    Optional accessories
    Engine• Heater • Battery Charger
    Alternator• Permanent Magnet Generator(PMG)
    Control system• Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling System
    Fuel system• Daily Fuel Tank • Water Separator • Fuel Level Sensor
    Others• Rainproof Type • Soundproof Type • Trailer Type • Extra spare Parts

    Standard AccessoriesOpen typeSilent type
    Sound-proof & Weather-proof CanopyN/A
    Daily base fuel tank.N/A
    Single-bearing generator again drops
    Analog type control panel
    Speed governor
    Electric start and 12v charger
    Standard air filter, oil filter, fuel filter
    Circuit breaker cabinet
    Cooling water tank
    High-efficient silencer.
    Exhaust elbow
    Storage battery
    Steel base-frame against vibration
    Soft pipe for fuel and handle for lube going-out
    Operation& Maintenance manual.

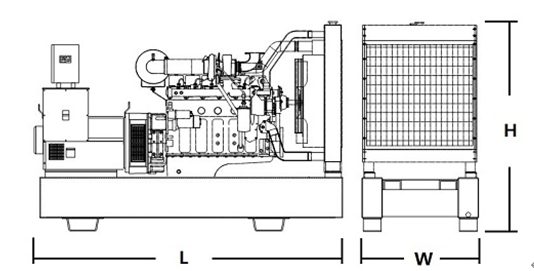

     DrawingDimension

    Open type:

    3800*1600*2100 mm

    4,500 kg

     Slient type:

    4900*2100*2400 mm

    7,000 kg


    Remark:


    Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(EQV ISO8528); a 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.


    Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.


    Warranty:Stone Power provides a full line of brand new and high quality products. Each Genset is strictly factory tested before delivery.


    We offer client warranty of 24 months or 2,000 running hours warranty which comes first

    Weichai Baudouin engine enjoy wroldwise after service offered by Weichai Baudouin global after service network.


    Quick after service and parts are available from Stone Power or distributors in your location.



    Package & Payment & Delivery Date & Warranty

    Package:Plastic Package.

    Payment: by 30 % T / T as deposit, 70% balance should be paid 10 days before shipment. Or 100 % L / C at sight.

    Delivery: 25 days after we get the down payment.

    Warranty: All Topower goods are warranted in accordance with our warranty terms for a period of 24 months from date of despatch or 2000 running hours from date of commissioning whichever date occurs the sooner.
