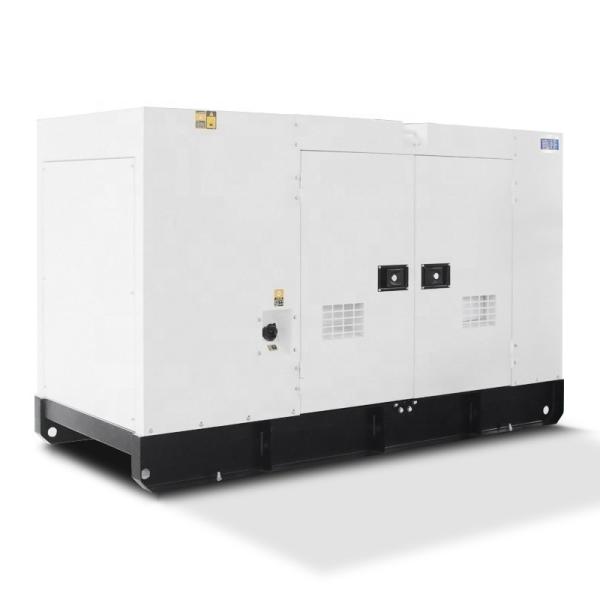

300kw 375kva 50hz 1500rpm Cummins Silent Diesel Generator NTAA855-G7

    Buy cheap 300kw 375kva 50hz 1500rpm Cummins Silent Diesel Generator NTAA855-G7 from wholesalers

    Buy cheap 300kw 375kva 50hz 1500rpm Cummins Silent Diesel Generator NTAA855-G7 from wholesalers
    • Buy cheap 300kw 375kva 50hz 1500rpm Cummins Silent Diesel Generator NTAA855-G7 from wholesalers

    300kw 375kva 50hz 1500rpm Cummins Silent Diesel Generator NTAA855-G7

    Ask Lasest Price
    Brand Name : STONE POWER
    Model Number : SC375E5
    Certification : CE, ISO, UL
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T, Western Union
    Supply Ability : 200 SETS / MONTH
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    300kw 375kva 50hz 1500rpm Cummins Silent Diesel Generator NTAA855-G7


    Cummins NTAA855-G7 300kw 375kva 50hz 1500rpm high performance diesel generator set


    Generator setModel No.SC375E5
    Standby power413KVA/330KW
    Rated power375KVA/300KW
    Output voltage230/400
    Rated speed (r/min.)1500
    Noise level(7m)78dB
    Power factorCOSΦ=0.8(lagging)
    Phase/wires3 phase 4 wires
    Start modeElectric
    Fuel consumption64.7L/h (average)
    Rated currency(amps)540
    ProtectionLow oil-pressure, High water temperature, Over-speed, Over-current.
    EngineBrandCummins
    ModelNTAA855-G7
    Original:China
    Cylinders6
    Fuel0# light diesel
    Inter-Coolingwater inter-cooling
    Compression Ratio14.0:1

    Engine Power

    (prime/standby)

    343KW/377KW
    AspirationTurbocharged / Air-air inter-cooling
    Governor/ClassElectric
    Bore and stroke140×152 mm
    Start modeDC24V electric start
    Cylinders LayoutIn Line
    Displacement14 L
    AlternatorBrandSTAMFORD
    ModelHCI 444FS
    ProtectionIP23
    Frequency fluctuation≤±0.5 %
    Voltage distortion<4%
    Prime Power380KVA(304KW)
    OriginalChina
    Rated voltage400/230 V
    Frequency regulation≤±0.5 %(stable)
    Voltage controlAVR

    Technical parameters of Control Panel:
    BrandDeep SeaModelDSE6020
    Function:

    • Start or Stop Generator set manually / automatically

    • Open controller output can be defined as Pre-heat/Idle output

    • High Coolant temperature protection

    • Low Oil pressure protection

    • Over load protection

    • Generator over/under frequency protection

    • Generator over/under/unbalance voltage Protection

    • Over speed protection

    • AMF

    Note:Indicate this function depend on the set points of the controller in field.

    Optional accessories
    Engine• Heater • Battery Charger
    Alternator• Permanent Magnet Generator(PMG)
    Control system• Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling System
    Fuel system• Daily Fuel Tank • Water Separator • Fuel Level Sensor
    Others• Rainproof Type • Soundproof Type • Trailer Type • Extra spare Parts

    Standard AccessoriesOpen typeSilent type
    Sound-proof & Weather-proof CanopyN/A
    Daily base fuel tank. 8 hours capacityN/A
    Single-bearing generator again drops
    Intelligent LED display control panel
    Speed governor
    Electric start and 12v charger
    Standard air filter, oil filter, fuel filter
    Cooling water tank
    High-efficient silencer.
    Exhaust elbow
    Storage battery
    Steel base-frame against vibration
    Soft pipe for fuel and handle for lube going-out
    Operation& Maintenance manual.

     DrawingDimension

    Open Type

    3200*1050*1863 mm

    Silent Type

    4420*1450*2400 mm


    Remark:


    Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(EQV ISO8528); a 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.


    Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.


    Warranty:Stone Power provides a full line of brand new and high quality products. Each Genset is strictly factory tested before delivery.


    We offer client warranty of 12 months or 1,000 running hours warranty which comes first (longer warranty period can be offered with extra charge)

    Perkins engine and Leroy Somer alternator enjoy wroldwise after service offered by Perkins and Leroy Somer global after service network.


    Quick after service and parts are available from Stone Power or distributors in your location.



    Package & Payment & Delivery Date & Warranty

    Package:Plastic Package.

    Payment: by 30 % T / T as deposit, 70% balance should be paid 10 days before shipment. Or 100 % L / C at sight.

    Delivery: 25 days after we get the down payment.

    Warranty: All Topower goods are warranted in accordance with our warranty terms for a period of 12 months from date of despatch or 1000 running hours from date of commissioning whichever date occurs the sooner.
