Silent Cummins Diesel Generator Set 1500rpm For Mining Industry

    Buy cheap Silent Cummins Diesel Generator Set 1500rpm For Mining Industry from wholesalers

    Buy cheap Silent Cummins Diesel Generator Set 1500rpm For Mining Industry from wholesalers
    • Buy cheap Silent Cummins Diesel Generator Set 1500rpm For Mining Industry from wholesalers

    Silent Cummins Diesel Generator Set 1500rpm For Mining Industry

    Ask Lasest Price
    Brand Name : STONE POWER
    Model Number : SC1125E5
    Certification : CE, ISO, EPA, UL
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T, Western Union
    Supply Ability : 200 SET / MONTH
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    Silent Cummins Diesel Generator Set 1500rpm For Mining Industry

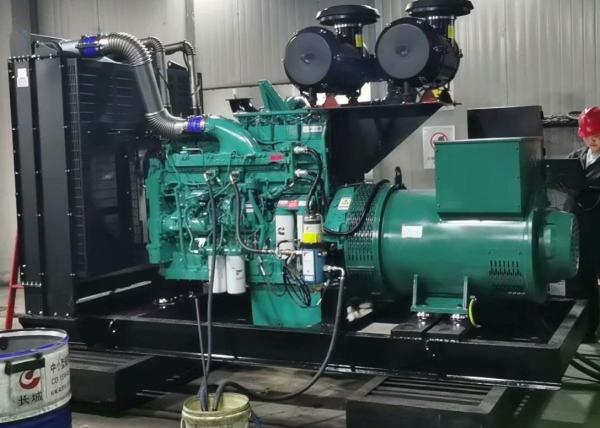

    Container 1125kva / 900kw 50HZ Silent CUMMINS Diesel Power Genset KTA38-G9 LV634F


    Features

    • Standard open type is good to working in engine room with ventilation system.

    • The super silent model ( up to 50kw ) has electronic cooling fan and special design low noise level canopy. which is specialized for low noise level environment, such as office building, villa, museum.

    • Standard soundproof type ( IP21 ) will be working perfectly in the open air

    • All standard type can be working in 3rd explosive area for mining industry, special design will be suitable for 2nd explosive area.

    • All functional components are modular design, for fast repair, replace, and reduce stock, which can satisfy rental business.

    • 50℃ radiator


    Output Ratings

    Gensets

    Model

    PrimeStandby
    kWkVAkWkVA
    SC1125E590011259901238

    Voltage440V-480V254V-277V208V-240V
    Amps1353-14762345-25572706-3123

    Ratings and Performance Data

    Engine BrandCummins
    Engine ModelKTA38-G9
    Alternator BrandStamford
    Alternator ModelLV634F
    Control SystemDSE6020 / DSE7320

    Standard Noise Level@7m

    (Soundproof Sets)

    82 db
    Circuit Breaker Type3 Pole MCCB
    Frequency & Phase50Hz & 3PH
    Engine Speed: RPM1500
    Fuel Tank Capacity: LOpen704
    Soundproof
    Fuel Consumption (l/hr)110% Load271
    100% Load245
    75% Load190
    50% Load136
    Lubricant15W40-CF4 Upgrade
    Total Lubricant Capacity (L)135

    Optional

    EngineAlternatorGeneratorFuel SystemCanopy

    Water Jacket Preheater

    Oil Preheater

    • Winding Temperature
    • Measuring Instrument
    • Alternator Preheater
    • PMG
    • Anti-damp and anti-corrosion treatment
    • Anti-condensation heater
    Toolkit with the machine
    • Low fuel level alarm
    • Automatic fuel feeding system
    • Fuel T-valves
    • Trailer
    • Galvanized

    Lubricating SystemExhaust SystemCooling SystemControl SystemVoltages
    Oil with the machineProtection board from hotness

    Front heat protection

    Coolant ( - 30 °C )

    • Remote control panel
    • ATS
    • 440 / 254 V
    • 416 / 240 V
    • 220 / 127 V

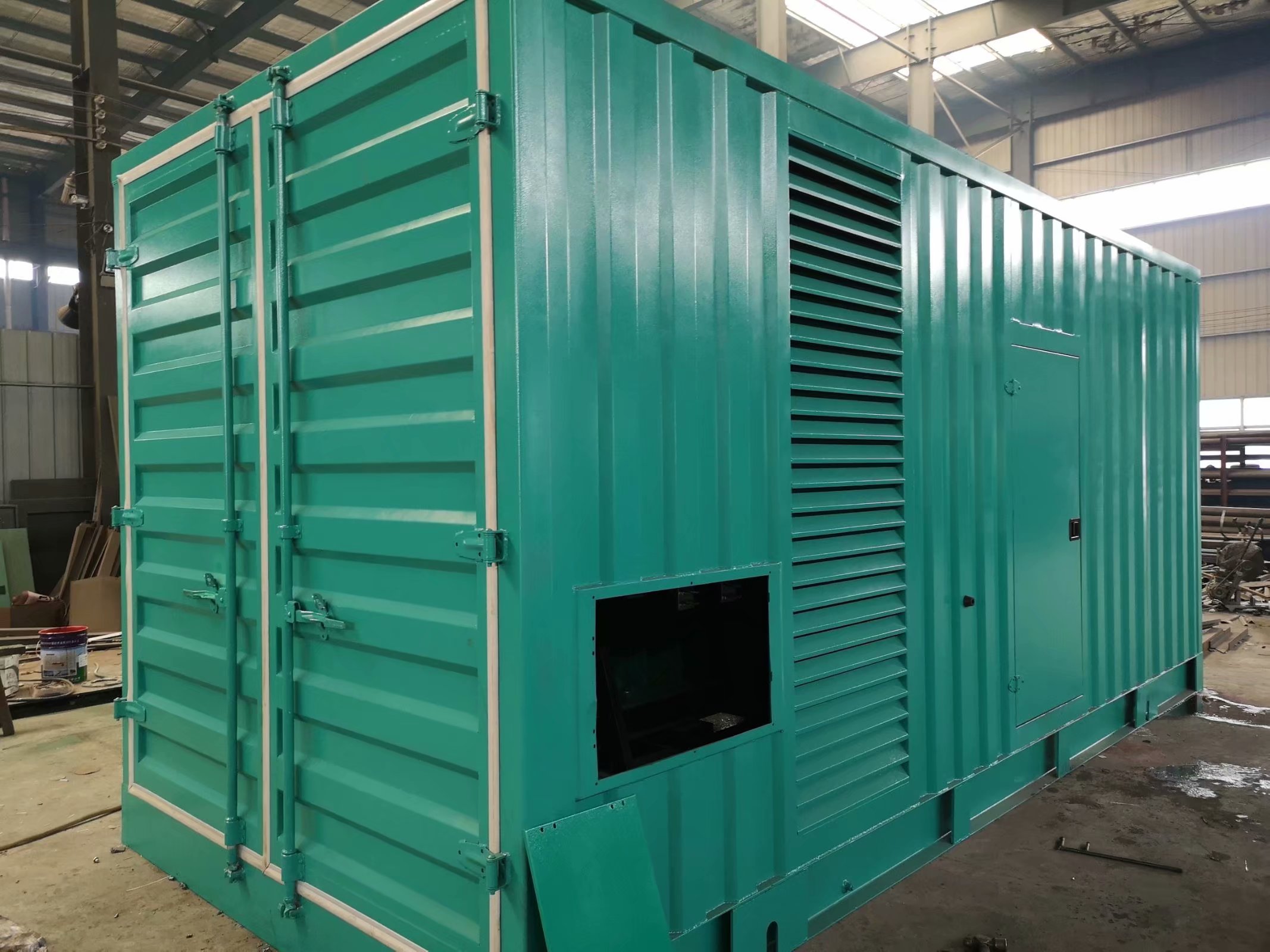

    The Details of Container 1125kva / 900kw 50HZ Silent CUMMINS Diesel Power Genset


    Package & Payment & Delivery Date & Warranty

    Package:Plastic Package.

    Payment: by 30% T/T as deposit, 70% balance should be paid 10 days before shipment. Or 100% L/C at sight.

    Delivery: 25 days after we get the down payment.

    Warranty: All Topower goods are warranted in accordance with our warranty terms for a period of 12 months from date of despatch or 1000 running hours from date of commissioning whichever date occurs the sooner.
