    Soundproof Canopy Weichai Diesel Generator Set Prime Output 320kw 400kva

    Ask Lasest Price
    Brand Name : Weichai Power
    Model Number : SW400E5
    Certification : CE
    Price : 17,000-18,500 USD/unit
    Payment Terms : L/C, T/T
    Supply Ability : 100 units per month
    Delivery Time : 3-5 weeks
    • Product Details
    • Company Profile

    Soundproof Canopy Weichai Diesel Generator Set Prime Output 320kw 400kva

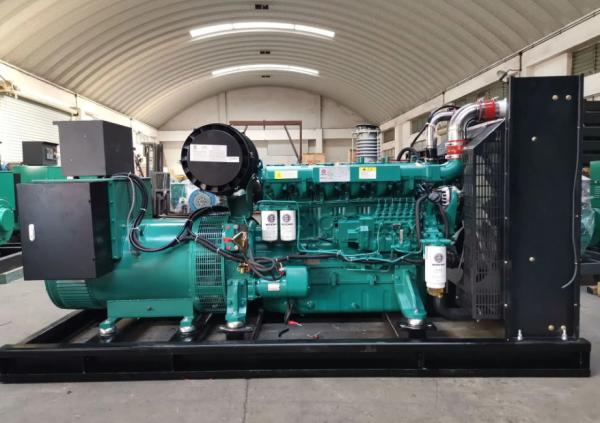

    Prime output 320kw/400kva weichai diesel generator set with soundproof canopy stamford alternator


    Why to choose weichai diesel generator?As weichai is one of the biggest diesel engine manufacture in the world now,sold more than 1 million units diesel engines in 2021.Weichai has global after service network all over the world and enjoy global warranty.

    Famous brand+Good quality+Global warranty+Competitive price,that is the advantage of Weichai generator.

    Weichai website:www.weichai.com


    Technical parameters:

    Generator setModel No.SW400E5
    Standby power440KVA/352KW
    Rated power400KVA/320KW
    Output voltage400V/ 3 phase
    Rated speed (r/min.)1500 or 1800
    Noise level(7m)76dB (silent type)
    Power factorCOSΦ=0.8(lagging)
    Phase/wires3 phase 4 wires
    Start modeElectric
    Fuel consumption63.5 L/h (Average)
    Rated currency(amps)576 A
    ProtectionLow oil-pressure, High water temperature, Over-speed, Over-current.
    EngineMManufactureWeichai
    ModelWP13D405E200
    Original:China
    Cylinders6
    Fuel0# light diesel
    Inter-CoolingTurbo charged,after cooling
    Compression Ratio17.0:1
    Engine Power (prime/standby)max power 405 kw
    AspirationDirect injection
    Governor/ClassElectronic
    Bore and stroke127×165 mm
    Start modeDC24V electric start
    Cylinders LayoutIn Line
    Displacement12.54 L
    AlternatorBrandStamford
    ModelS4L1D-F4
    ProtectionIP23
    Frequency fluctuation≤±0.5 %
    Voltage distortion<4%
    Prime Power400KVA(320KW)
    OriginalChina
    Rated voltage400/230 V
    Frequency regulation≤±0.5 %(stable)
    Voltage controlAVR

    Technical parameters of Control Panel:
    BrandSmartgenModel7110
    Function:

    • Start or Stop Generator set manually / automatically

    • Open controller output can be defined as Pre-heat/Idle output

    • High Coolant temperature protection

    • Low Oil pressure protection

    • Over load protection

    • Generator over/under frequency protection

    • Generator over/under/unbalance voltage Protection

    • Over speed protection

    • AMF

    Note:Indicate this function depend on the set points of the controller in field.

    Standard AccessoriesOpen typeSilent type
    Sound-proof & Weather-proof CanopyN/A
    Daily base fuel tank. 8 hours capacityOptional
    Single-bearing generator again drops
    Intelligent LED display control panel
    Speed governor
    Electric start and 12v charger
    Standard air filter, oil filter, fuel filter
    Cooling water tank
    High-efficient silencer.
    Circuit breaker
    Exhaust elbow
    Storage battery
    Steel base-frame against vibration
    Soft pipe for fuel and handle for lube going-out
    Operation& Maintenance manual.

     DrawingDimension

    Open type:

    3000*1215*1880 mm


    Silent type:

    4000*1400*2250 mm



    FAQ:

    Q1:What is the warranty policy of weichai series diesel generator set?

    Warranty:Stone Power provides a full line of brand new and high quality products. Each Genset is strictly factory tested before delivery.


    We offer client warranty of 12 months or 1,000 running hours warranty which comes first (longer warranty period can be offered with extra charge)

    Weichai engine and Stamford/Leroy Somer/Marathon alternator enjoy wroldwise after service offered by Weichai and Stamford/Leroy Somer/Marathon global after service network.

    Quick after service and parts are available from Stone Power or distributors in your location.


    Q2:If I want to visit your factory,how can I get?

    Welcome to visit our factory,our factory located in Nanjing City,China,about 1 hour by car from Nanjing Airport or South Nanjing railway station.We can pick you up at Nanjing Airport or railway station.
