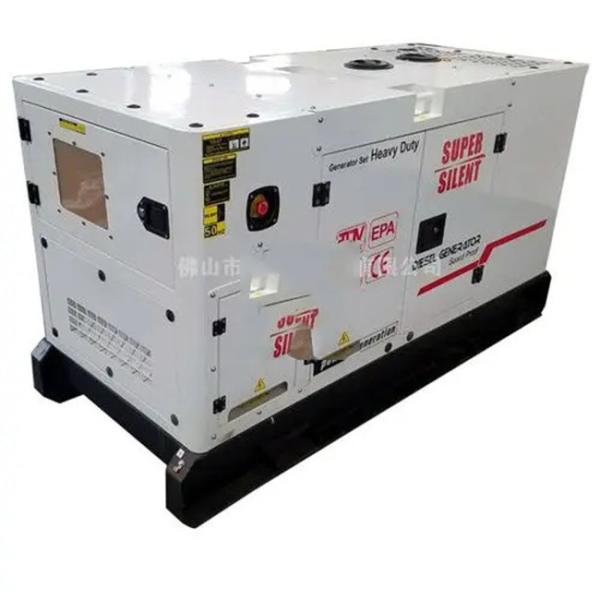

    24kw 30kva Weichai Diesel Generator Set With Stamford / Leroy Somer Alternator

    Ask Lasest Price
    Brand Name : Stone Power
    Model Number : SW30M5
    Certification : CE
    Price : 3,000-4,000 USD/unit
    Payment Terms : L/C, T/T
    Supply Ability : 92-95 units per month
    Delivery Time : 12-25 days
    • Product Details
    • Company Profile

    24kw 30kva Weichai Diesel Generator Set With Stamford / Leroy Somer Alternator

    weichai diesel generating set super silent 24kw/30kva with stamford/leroy somer alternator


    Why to choose weichai diesel generator?As weichai is one of the biggest diesel engine manufacture in the world now,sold more than 1 million units diesel engines in 2021 And its products are exported to more than 110 countries and regions.

    .Weichai has global after service network all over the world and enjoy global warranty.

    Famous brand+Good quality+Global warranty+Competitive price,that is the advantage of Weichai generator.

    Weichai website:www.weichai.com


    Technical parameters:

    Generator setModel No.SW30M5
    Standby power33KVA/26.4KW
    Rated power30KVA/24KW
    Output voltage230/400
    Rated speed (r/min.)1500
    Noise level(7m)72dB (silent type)
    Power factorCOSΦ=0.8(lagging)
    Phase/wires3 phase 4 wires
    Start modeElectric
    Fuel consumption4.4L/h (Average)
    Rated currency(amps)43
    ProtectionLow oil-pressure, High water temperature, Over-speed, Over-current.
    EngineBrandWeichai
    ModelWP2.3D33E200
    Original:China
    Cylinders4
    Fuel0# light diesel
    Inter-CoolingN/A
    Compression Ratio17.5:1
    Engine Power (prime/standby)30KW/33KW
    AspirationNA
    Governor/ClassMechanical
    Bore and stroke89×92 mm
    Start modeDC24V electric start
    Cylinders LayoutIn Line
    Displacement2.3 L
    AlternatorBrandLeroy Somer
    ModelTAL-A42-C
    ProtectionIP23
    Frequency fluctuation≤±0.5 %
    Voltage distortion<4%
    Prime Power30KVA(24KW)
    OriginalChina
    Rated voltage400/230 V
    Frequency regulation≤±0.5 %(stable)
    Voltage controlAVR

    Technical parameters of Control Panel:
    BrandSmartgenModel6110
    Function:

    • Start or Stop Generator set manually / automatically

    • Open controller output can be defined as Pre-heat/Idle output

    • High Coolant temperature protection

    • Low Oil pressure protection

    • Over load protection

    • Generator over/under frequency protection

    • Generator over/under/unbalance voltage Protection

    • Over speed protection

    • AMF

    Note:Indicate this function depend on the set points of the controller in field.

    Standard AccessoriesOpen typeSilent type
    Sound-proof & Weather-proof CanopyN/A
    Daily base fuel tank. 8 hours capacityOption
    Single-bearing generator again drops
    Intelligent LED display control panel
    Speed governor
    Electric start and 12v charger
    Standard air filter, oil filter, fuel filter
    Cooling water tank
    High-efficient silencer.
    Circuit breaker
    Exhaust elbow
    Storage battery
    Steel base-frame against vibration
    Soft pipe for fuel and handle for lube going-out
    Operation& Maintenance manual.

     DrawingDimension

    Open type: 1685*800*1260 mm


    Silent type:

    2285*1210*1440 mm



    FAQ:

    Q1:How about the warranty of weichai series diesel generator set?


    Stone Power provides a full line of brand new and high quality products. Each Genset is strictly factory tested before delivery.

    We offer client warranty of 12 months or 1,000 running hours warranty which comes first (longer warranty period can be offered with extra charge)

    Weichai engine and Stamford/Marathon/Leroy Somer alternator also enjoy worldwise after service offered by their global after service network.

    Quick after service and parts are available from Stone Power or distributors in your location.


    Q2:If I want to visit your factory,how can I get?


    Our factory Address: Guanshan industrial area. jingqiao town. lishui district. Nanjing .JIANGSU China.Welcome to visit our factory,our factory is about 1 hour by car from Nanjing Airport or South Nanjing railway station.We can pick you up at Nanjing Airport or railway station.
