50HZ / 1500rpm Open Diesel Generator With Engine HC12V132ZL-LA1A 4830×1740×2070mm

    Buy cheap 50HZ / 1500rpm Open Diesel Generator With Engine HC12V132ZL-LA1A 4830×1740×2070mm from wholesalers

    Buy cheap 50HZ / 1500rpm Open Diesel Generator With Engine HC12V132ZL-LA1A 4830×1740×2070mm from wholesalers
    • Buy cheap 50HZ / 1500rpm Open Diesel Generator With Engine HC12V132ZL-LA1A 4830×1740×2070mm from wholesalers
    • Buy cheap 50HZ / 1500rpm Open Diesel Generator With Engine HC12V132ZL-LA1A 4830×1740×2070mm from wholesalers
    • Buy cheap 50HZ / 1500rpm Open Diesel Generator With Engine HC12V132ZL-LA1A 4830×1740×2070mm from wholesalers

    50HZ / 1500rpm Open Diesel Generator With Engine HC12V132ZL-LA1A 4830×1740×2070mm

    Ask Lasest Price
    Brand Name : STONE POWER
    Model Number : SD688E5
    Certification : ISO/CE
    Price : Negotiable
    Supply Ability : 200 sets per month
    Delivery Time : In one month
    • Product Details
    • Company Profile

    50HZ / 1500rpm Open Diesel Generator With Engine HC12V132ZL-LA1A 4830×1740×2070mm

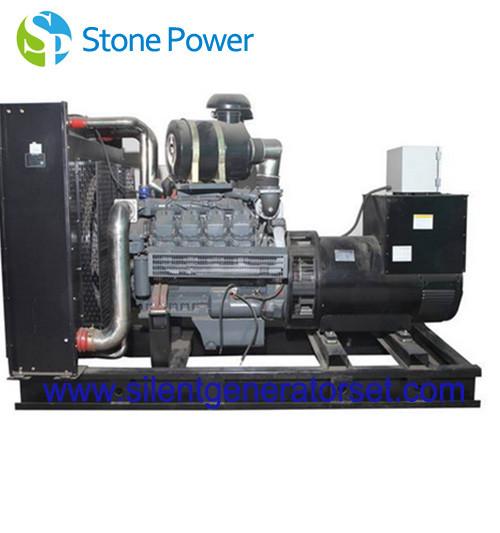

    550KW 688KVA DEUTZ Diesel Generator Set with engine HC12V132ZL-LA1A
    Product Description
    Technical parameters of diesel generator set HC12V132ZL-LA1A
    Rated power
    550KW/688KVA
    RPM & Frequency
    1500/50HZ
    Standby power
    605KW/757KVA
    Power factor
    0.8
    Rated Voltage
    400/230V
    Phase
    3
    Fuel tank capacity
    880L
    Noise value
    113db
    Dimension
    4830*1740*2070mm
    Weight
    5400kg
    Diesel engine technical parameters
    Engine brand
    Deutz
    Air intake mode
    Turbocharged
    Engine Model
    HC12V132ZL-LAG1A
    Cylinders
    12
    Configuration
    4 cycle ,12 cylinders in "V"
    Bore*Stroke
    170×195mm
    Displacement (Liter)
    53.11
    Start the system
    DC 24V
    Compression ratio
    18:1
    Cooling system
    water-cooling
    Maximum engine power
    670KW/1500RPM
    Lubricating oil system
    Pressure lubrication
    Lubricating oil capacity
    130L
    Lubricating oil brand
    CD-40
    Fuel consumption
    200g/kw.h
    Oil consumption
    0.3 g/kw.h
    Alternator Data
    Brand
    SUANMA POWER
    Control system
    AVR
    Model
    SMI-550
    Insulation class
    H
    Capacity
    687.5KVA
    Protection Grade
    IP23
    The stator winding
    Single layer winding
    Temperature level
    H
    Effectiveness
    96.2%
    Voltage regulation rate
    ±0.5%
    Product Overviews


    550kw deutz generator with engine HC12V132ZL-LA1A


    5450kw deutz diesel generator with engine HC12V132ZL-LA1A


    550kw deutz generator set


    550kw silent generator set price with Deepsea control panel


    550kw silent diesel generator with soundproof canopy

    Stone Power diesel generator design except for silent type, also have Open type, Container type, Trailer type for your choose:
    For open type, the diesel genset will be much easier to maintenance and repair, with more durable performance and longer service life, so the cost performance is higher.
    For silent type, diesel generator set, the noise level can be 68-78db(A) @ 7M; with silent canopy, the genset can be soundproof, rainproof, rustproof, dustproof and more safe.
    Q1: How is your Package & Payment & Delivery Date & Warranty?

    A.1) Package:Plastic Package.
    A.2) Payment: by 30% T/T as deposit, 70% balance should be paid 10 days before shipment. Or 100% L/C at sight.
    A.3) Delivery: 25 days after we get the down payment.
    A.4) Warranty: All Topower goods are warranted in accordance with our warranty terms for a period of 12 months from date of despatch or 1000 running hours from date of commissioning whichever date occurs the sooner.

    Q2: Any advantages about your company?
    Answers: Stonepower Brand Diesel Generators with following advantages:
    ---- Middle-high Positioning;
    ---- 25days Lead-time;
    ---- Designed by CAE and CAF Software;
    ---- Got the ISO and CE certificate;
    ---- High quality with the best price can help you get more benefit and beat your competitors;
    ---- Powered by Cummins, Perkins, Detuz etc. famous engine brands optional;
    ---- Open, Soundproof Canopy, Container, Trailer etc. for your choose.


    Q3: Any advantage of Digital Control Panel?
    1) Controller Brand: Smartgen, Deepsea,ComAp
    2) Control Panel: English interface,LED screen and touch buttons.
    3) Main Functions:
    1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.
    2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
    3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown



    Q4: Any catalogue for other brands and power?
