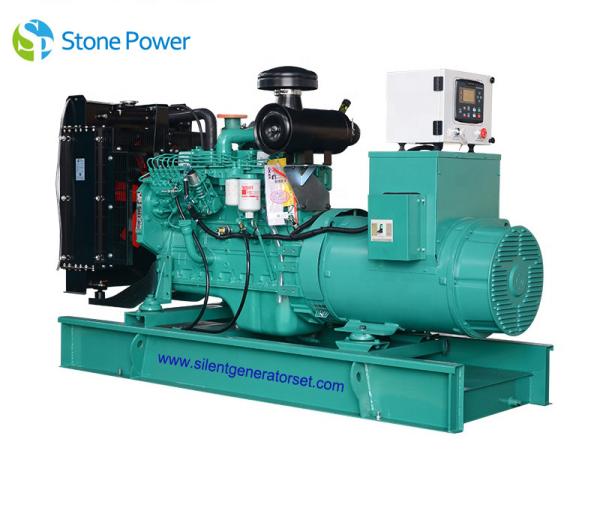

300kw marine diesel generator marine power by Cummins KTA19-DM with CCS

Cummins series marine main generator set and emergency set are provided, the power range from 20KW TO 1600KW, compact unit is easy to install, with low fuel consumption, good dynamic performance, high efficiency. The ship certificate of CCS, BV,NK or other major classification society can be provided.

Our gensets compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4standards

Prime output power: 8kw-1600 kw (10kva-1600kva)

Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc.

Phase/connecting: 3 phase, 4wire.

Rated frequency: 50Hz@1500rpm, 60Hz@1800rpm

Alternator excited type: Brushless, self excited or PMG

Insulation: Class H

Protection: IP21~IP23

Voltage regulation: AVR automatic control

Altitude above sea level: ≤1000 meters

Ambient air temperature: ≤40°C

Relative air humidity: ≤ 90%

Engine Feature

1.Diesel, heavy-duty, four stroke, water cooled and direct injection fuel system
2.24/12V D.C starter and charger alternator
3.Industrial capacity exhaust silencer supplied loose with flexible section

4.Engine driven cooling fan with protection guard

5.Steel wire braided fuel lines, vent and rain fittings

6.Set mounted acid battery installed with leads and terminals

7. Noise level: 65dB to 75DB from 7meter away

Alternator Feature

1.Brushless self excited, single bearing, 4 poles
2.Class H insulation
3.IP21/23 protection standard
4.Self-exciting and self-regulating

5.Automatic voltage regulator (AVR)

6. Phase: 3-phase, 4-wire

7. Connection: Y or other type connection

8. Rated speed: 1,500rpm / 1,800rpm

9. Excitation: harmonic excitation or phase compound or brushless

10. Voltage regulation: automatic

11. 1.0% voltage regulation (max.) in static conditions

12.Protection class: IP 22 or IP23

13. Connect with engine:Direct coupled with flywheel

Control System

1.manual / auto start and protection module
2.Equipped with Deep Sea,ComAp,Harsen,Smartgen famous control systems.

3.New integrated controllers in manual and remote start application.

4.Featuring full gen-set monitoring and protection.

5.Powerful graphic display, Icons, symbols and bar graphs

6. High functionality set new standards in gen-set control.

7.Special low temperature version is also available.

8. With AMF control panel or with ATS (automatic transfer system)

9. With EPA certification

Packing

Wooden case or plywood case

Warranty

Warranty:Guarantee for one year or 1200hours from ex-factor date.During the repair time,we will provide the free easy-damageable spare arts of diesel engine caused by our quality of production or raw material.After expiration,we will supply cost spare part for you to repair it.

Our Adervantage:

1. We are the original supplier of CCEC engine assembly and engine parts.

2. We can give strong technical support.

3. We can matching the engine assembly and parts quickly and accurately.

4. We can produce according to the special requirements of the customers.

FQL:

Q1. Can you provide technical support?

A: Yes, As an OEM branch of CCEC, we can provide strong technical support for you. and we can

provide other brands of generators and lister.

Q2: If I only had the engine NO, Can you find the matching parts quickly for me?

A: Yes, we are equipped with CCEC QuickService Online System that enables us to provide information of CCEC engine assembly and parts quickly and accurately.

Q3: How long is the production time of the goods?

A: We have a lot of regular inventory of the parts, it will take 3-7 days after receiving your advance payment. and the engine assembly delivery time depends on the items and specification of customers.

Q4: What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We will show you the photos of the goods and packages before you pay the balance.

Q5. What is your packing method?

A: Generally, the engine assembly is packed in wooden case, the parts is packed in carton. And we can also according to customers requests.
