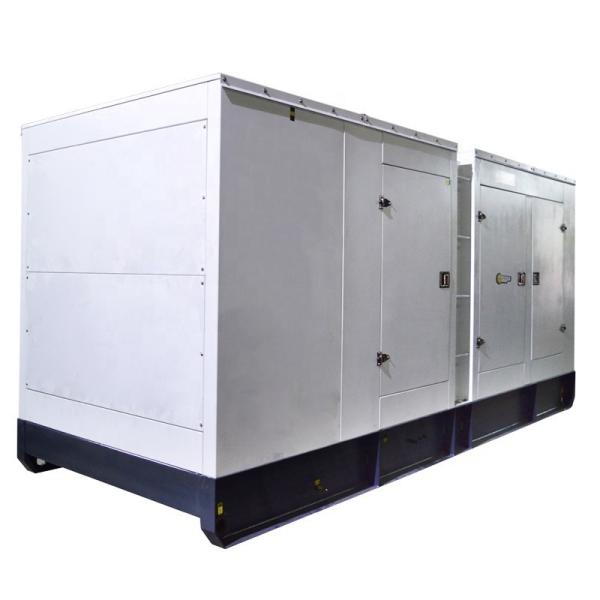

    White Perkins Electric Generators Water Cooled Dg Sets High Performance

    Ask Lasest Price
    Brand Name : STONE POWER
    Model Number : SP650E5
    Certification : CE, ISO, UL
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T, Western Union
    Supply Ability : 200 SETS / MONTH
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    White Perkins Electric Generators Water Cooled Dg Sets High Performance


    Perkins 650KVA/520KW 2806A-E18TAG2 1500rpm water cooled diesel genset


    Generator setGenset ModelSP650E5
    Standby power700KVA/560KW
    Rated power650KVA/520KW
    Output voltage230v/400v
    Frequency50 Hz
    Noise level(7m)N/A

    Power factor

    COSΦ=0.8(lagging)
    Phase/wires3 phase 4 wires
    Start modeBattery
    Ambient temperature-25°C to 50°C. The coolant heater is needed when the temperature is below 5°C
    HumidityLess than 80%
    AltitudeBelow one thousand (1000) meters
    Max currency(amps)1010.4
    ProtectionLow oil-pressure, High water temperature, Over-speed, Over-current.
    EngineBrandPerkins
    Model2806A-E18TAG2
    Cylinders6
    Cycle4 stroke
    Fuel0# light diesel
    Compression ratio14.5:1
    Stand Power628 kw
    Prime Power584 kw
    Type of injectionIndirect injection
    Intake systemTurbocharge
    Intake resistance≤6.4kPa
    Governor/ClassElectrical
    Start modeDC24V electric start
    Cooling systemWater cooled (by radiator)
    Cylinders LayoutLine
    Displacement

    18.13L

    Rated speed (r/min.)1500

    Alternator

    BrandLeroy Somer
    ModelTAL-A47-F
    Frequency50Hz
    Phase3 phase
    windings100% copper
    ExciterBrushless
    wiring12 wires
    Terminals6 or 12
    Insulation classH
    Altitude≤1000m
    Overspeed2250rpm
    ProtectionIP23
    Air Flow0.15m³/s
    Frequency fluctuation≤±0.5 %
    Voltage regulation±0.5%
    Voltage distortion<4%
    Total harmonic TGH/THC<4%
    Telephone InterferenceTHF<2%;TIF<50
    Prime Power528kw/660kva
    OriginalChina
    Rated voltage240/120V switchable
    Frequency regulation≤±0.5 %(stable)
    Voltage controlAVR

    Technical parameters of Control Panel:
    BrandDeep SeaModelDSE6020
    Function:

    • Start or Stop Generator set manually / automatically

    • Open controller output can be defined as Pre-heat/Idle output

    • High Coolant temperature protection

    • Low Oil pressure protection

    • Over load protection

    • Generator over/under frequency protection

    • Generator over/under/unbalance voltage Protection

    • Over speed protection

    • AMF

    Note:Indicate this function depend on the set points of the controller in field.

    Optional accessories
    Engine• Heater • Battery Charger
    Alternator• Permanent Magnet Generator(PMG)
    Control system• Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling System
    Fuel system• Daily Fuel Tank • Water Separator • Fuel Level Sensor
    Others• Rainproof Type • Soundproof Type • Trailer Type • Extra spare Parts

    Standard AccessoriesOpen typeSilent type
    Sound-proof & Weather-proof CanopyN/A
    Daily base fuel tank. 8 hours capacityN/A
    Single-bearing generator again drops
    Intelligent LED display control panel
    Speed governor
    Electric start and 12v charger
    Standard air filter, oil filter, fuel filter
    Cooling water tank
    High-efficient silencer.
    Exhaust elbow
    Storage battery
    Steel base-frame against vibration
    Soft pipe for fuel and handle for lube going-out
    Operation& Maintenance manual.

     DrawingDimension

    Open Type

    2600*1050*1550 mm

    Silent Type

    4692*1740*2516 mm

    6483 kg


    Remark:


    Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(EQV ISO8528); a 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.


    Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.


    Warranty:Stone Power provides a full line of brand new and high quality products. Each Genset is strictly factory tested before delivery.


    We offer client warranty of 12 months or 1,000 running hours warranty which comes first (longer warranty period can be offered with extra charge)

    Perkins engine and Leroy Somer alternator enjoy wroldwise after service offered by Perkins and Leroy Somer global after service network.


    Quick after service and parts are available from Stone Power or distributors in your location.



    Package & Payment & Delivery Date & Warranty

    Package:Plastic Package.

    Payment: by 30 % T / T as deposit, 70% balance should be paid 10 days before shipment. Or 100 % L / C at sight.

    Delivery: 25 days after we get the down payment.

    Warranty: All Topower goods are warranted in accordance with our warranty terms for a period of 12 months from date of despatch or 1000 running hours from date of commissioning whichever date occurs the sooner.
