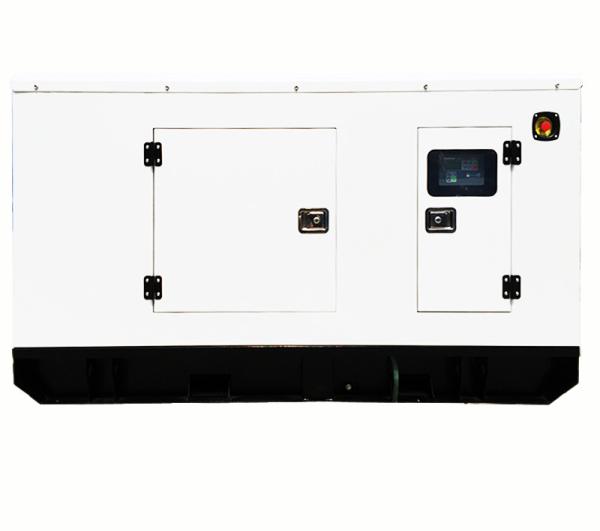

PERKINS Diesel Generator Set , 11KVA/9KW 60Hz PERKINS Diesel Engine Model 403D-11G

Technical parameters of Control Panel:
Brand	Deep Sea	Model	DSE6020
Function:
• Start or Stop Generator set manually / automatically • Open controller output can be defined as Pre-heat/Idle output • High Coolant temperature protection • Low Oil pressure protection • Over load protection • Generator over/under frequency protection • Generator over/under/unbalance voltage Protection • Over speed protection • AMF
Note:Indicate this function depend on the set points of the controller in field.

Drawing	Dimension
	Open Type 1220*590*1055 mm
	Silent Type 1832*881*1304 mm 636kg

Remark:

Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(EQV ISO8528); a 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.

Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Warranty:Stone Power provides a full line of brand new and high quality products. Each Genset is strictly factory tested before delivery.

We offer client warranty of 12 months or 1,000 running hours warranty which comes first (longer warranty period can be offered with extra charge)

Perkins engine and Leroy Somer alternator enjoy wroldwise after service offered by Perkins and Leroy Somer global after service network.

Quick after service and parts are available from Stone Power or distributors in your location.

Stone Power is belong to Yinpeng Group,one  of the biggest industrial/marine diesel generator set and marine engine supplier in China,located in Nanjing,China,which is the flourishing area of the world manufacturing,one of the largest manufacturing bases of diesel generater set in China,covering an area of 35,000㎡ and with a 10,000㎡ assembly workshop. StonePower is specilized in designing and manufacturing multi-cyclinder and multi-series industrial diesel generator sets, water pump units and relevant equipments for a variety of application ,such as telecommunication system, data center, mining, electric power, harbor equipment , engineering companies, financial systems, hotels, railways, airports,commercial buildings, hospitals, factories and etc.

StonePower adopts internationally and domestically reputed high-uality engines and alternators including Cummins,Perkins Deutz,Mitsubishi,Lovol,YTO,Ricardo for our industrial diesel generator sets, with power range from 20kW to 1500kW and various types of design. With the compelling quality and service,StonePowerhas built a good reputation with customers in the line of generator sets, our products are exported to morethan 30 countries including Europe, Americas ,Middle East, Africa, Asia and other regions.


We dedicate to make this work place safe and efficient. we are proud of our management team and employees who have best quality and deep experience in the industry. Stone Power is dedicating to establishing good relationship with customers through closed cooperation and integrity. It has been constantly cooperating with excellent international and domestic enterprises to utilize the best resources to bring Stone Power to cultivate an international brand.
