Product Description:

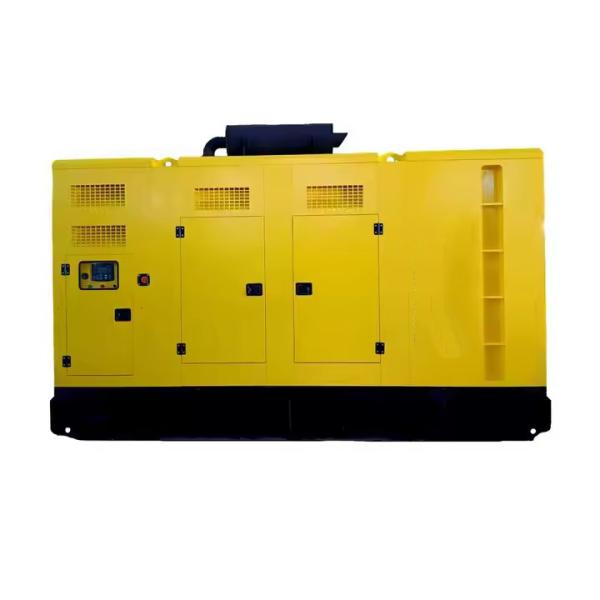

The Silent Diesel Generator Set is a high-quality product designed to provide reliable power in a variety of settings. With its advanced features and durable construction, this generator set is ideal for both residential and commercial applications.

One of the key features of this generator set is its Control Model Type, which is Auto Start. This allows for easy and convenient operation, ensuring that the generator can start automatically in the event of a power outage. This feature makes the generator set a reliable source of backup power for homes, businesses, and other facilities.

The engine brand of the Silent Diesel Generator Set is Cummins, a well-known and trusted name in the industry. Cummins engines are known for their durability, efficiency, and performance, making them an excellent choice for powering generators. With a Cummins engine, you can be confident that your generator set will provide consistent and reliable power when you need it most.

Another important attribute of this generator set is its cooling method, which is Water Cooling. Water cooling is an efficient and effective way to regulate the temperature of the engine, ensuring optimal performance and longevity. This cooling method helps prevent overheating and ensures that the generator set operates smoothly and reliably over time.

The Starting System of the generator set is Auto Start, providing added convenience and ease of use. With an auto start system, the generator can be activated automatically, saving you time and effort in emergency situations. This feature ensures that your power supply is restored quickly and seamlessly, minimizing downtime and disruption.

In addition, the Silent Diesel Generator Set features a Charging Voltage of 12V(DC), which is essential for maintaining the battery and electrical system of the generator. A reliable charging voltage helps ensure that the generator set is always ready to operate when needed, providing peace of mind and security in any situation.

Overall, the Silent Diesel Generator Set is a versatile and dependable product that offers the benefits of a Silent Oil-based Electricity System. With its Whispering Combustion Power Plant and Hushed Fuel Motor Set, this generator set is designed to deliver quiet and efficient power generation while maintaining high performance and reliability. Whether you need backup power for your home, office, or industrial facility, this generator set is a smart choice that will meet your power needs with ease.

Diesel Generator Set Data
Set Type:	SC475E5
Standby Power:	400KW/500KVA
Prime Power:	380KW/475KVA
Rated Current:	720 (A)
Rated Frequency:	50(Hz)
Start-up time:	5～6(s)
Power Factor:	0.8(Lag)
Rated Voltage:	400/230(V)
Diesel Engine Data
Manufacturer:	DCEC Cummins
Model:	QSZ13-G3
Rated Speed:	1500(r/min)
Cycle:	4 stroke
Cylinder Arrangement:	6 cylinders, Inline
Displacement:	13L
Bore and Stroke:	130*163(mm)
Compression Ratio:	17:01
Governor Type:	Electronic
Start battery voltage:	24V DC
Air Intake System
Air Intake System:	Turbocharged, Aftercooled, Water/Air Cooling
Max Intake Restriction:	6.2kPa
Burning Capacity:	19.3m3/min
Air Flow:	490m3/min
Exhaust System
Exhaust Gas Flow:	57m3/min
Exhaust Temperature:	470℃
Max Back Pressure:	10kPa
Fuel System
Fuel System:	Cummins XPI type fuel pump
100%( Prime Power) Load:	193g/kwh
50%( Prime Power) Load:	187g/kwh
Oil System
Total Oil Capacity:	45.42L
Oil Consumption:	≤0.4g/kwh
Engine Oil Tank Capacity:	24L
Oil Pressure at Rated RPM:	276-414kPa
Cooling System
Cooling Way:	Water-cooled
Total Coolant Capacity:	23.1L
Thermostat:	82-93℃
Max Water Temperature:	104℃
Alternator Data
Manufacturer:	LEROY SOMER/STAMFORD/SIEMENS/MARATHON/ENGGA /KEPU
Excitation Mode:	Brushless and self- exciting
Number of phase and Access Act:	3-phase 4-wire
Connecting Type:	“Y” type connecting
Alternator Capacity:	500KVA
Alternator Efficiencies:	95%
Overload:	(PRP)110% load can run 1h
Protection Level:	IP22-IP23
Insulation Class, Temperature Rise:	H/H
Telephone Influence Factor (TIF):	＜50
THF:	＜2%
Voltage Regulation, Steady State:	≤±1%
Air Cooling Flow:	0.58m3/s
Altitude:	≤1000m
Genset Electrical Performance
Voltage Regulation:				≥±5%
Voltage Regulation, Stead State:				≤±1%
Sudden Voltage Warp (100% Sudden Reduce):				≤+25%
Sudden Voltage Warp (Sudden Increase):				≤-20%
Voltage Stable Time (100% Sudden Reduce):				≤6S
Voltage Stable Time (Sudden Increase):				≤6S
Frequency Regulation, Stead State:				≤5%
Frequency Waving:				≤1.5%
Sudden Frequency Warp (100% Sudden Reduce):				≤+12%
Sudden Frequency Warp (Sudden Increase):				≤-10%
Frequency Recovery Time(100%Sudden Reduce):				≤5S
Frequency Recovery Time(Sudden Increase):				≤5S
Options
Engine		Alternator
Heater 2KW & 4KW			Anti Condensation Heater
Battery Charger 3.5A & 7A			Permanent Magnet Generator(PMG)
Water Separator			Drop CT(For Paralleling)
Daily Fuel Tank
Fuel Level Sensor
Control System			Others
Remote Control Panel			Rainproof Type
Auto Transfer Switch (ATS)			Soundproof Type
Paralleling System			Trailer Type
Soundproof Type
Overall Size			Weight
3270(mm)*1140(mm)*1800(mm)			3200(kg)

Packing and Shipping:

Product Packaging for Silent Diesel Generator Set:

The Silent Diesel Generator Set will be carefully packaged in a sturdy cardboard box to ensure safe transportation and delivery. The product will be securely cushioned with protective materials to prevent any damage during transit.

Shipping Information:

Once your order is confirmed, the Silent Diesel Generator Set will be shipped within 2 business days. We use reliable shipping carriers to ensure timely delivery to your specified address. You will receive a tracking number to monitor the status of your shipment.
