More 50Hz/60Hz Voltage Weichai Product with and Standby power
28KVA/22KW
Product Description:
Having obtained the ISO and CE certificates, the Weichai Diesel
Generator Set meets international quality standards, guaranteeing
its reliability and safety. Customers can trust in the product's
compliance with industry regulations, providing peace of mind when
using the generator set in various applications.
This Chinese famous brand brings a rich experience in design and
manufacturing to the table, ensuring that each generator set is
crafted with precision and expertise. With a focus on quality and
innovation, Weichai Diesel Generator Set stands out as a trusted
choice for those seeking a dependable power solution.
The power range of the Weichai Diesel Generator Set spans from 20kW
to 2000kW, catering to a wide range of power requirements across
different industries and applications. Whether for residential,
commercial, or industrial use, this generator set offers ample
power to support various electrical loads with ease.
Operating at rated speeds of 1500rpm or 1800rpm, the Weichai Diesel
Generator Set delivers consistent and reliable performance. The
engines are designed to operate smoothly and efficiently, ensuring
optimal power generation for extended periods. Customers can rely
on this generator set for continuous and dependable power supply.
In conclusion, the Weichai Diesel Generator Set is a versatile and
reliable power solution that combines quality engineering with
advanced features. With its range of engine models, water-cooled
system, ISO and CE certifications, and power range of 20-2000kW,
this product caters to diverse needs with ease. Backed by a rich
experience in design and manufacturing, this Chinese famous brand
offers a trustworthy and efficient generator set for a wide range
of applications. Customers can count on the Weichai Diesel
Generator Set for consistent and reliable power generation,
ensuring smooth and uninterrupted operation in various settings.
Technical Parameters:
| Generator set | Model No. | SW25E5 |
| Standby power | 28KVA/22KW |
| Rated power | 25KVA/20KW |
| Output voltage | 400V/415V |
| Frequency | 50 Hz |
| Noise level(7m) | 68 dB (silent type) |
| Power factor | COSΦ=0.8(lagging) |
| Phase/wires | 3 phase 4 wires |
| Start mode | Electric |
| Fuel consumption | 5.7L/h (100% load) 4.3L/h (75% load) |
| Max currency(amps) | 40 (400V) /38(415V) |
| Protection | Low oil-pressure, High water temperature, Over-speed, Over-current. |
| Engine | Brand | Weichai |
| Model | WP2.3D25E200 |
| Rated speed (r/min.) | 1500 |
| Cylinders layout | 4 in line |
| Fuel | 0# light diesel |
| Compression Ratio | 17.5:1 |
| Engine Power (prime/standby) | 23KW/25KW |
| Aspiration | Normally aspirated |
| Governor/Class | Electronic |
| Bore and stroke | 89×92 mm |
| Start mode | DC24V electric start |
| Displacement | 2.3 L |
| Alternator | Brand | Leroy Somer |
| Model | TAL-A40-G |
| Protection | IP23 |
| Insulation class | H |
| Frequency fluctuation | ≤±0.5 % |
| Phase | 3 phase,4 wires |
| Voltage distortion | ＜4% |
| Output (Cont./standby) | 25KVA/27.5KVA |
| Rated speed (r/min.) | 1500 |
| Rated voltage | 380-415V Adjustable |
| Frequency regulation | ≤±0.5 %(stable) |
| Voltage control | AVR |
| Technical parameters of Control Panel: |

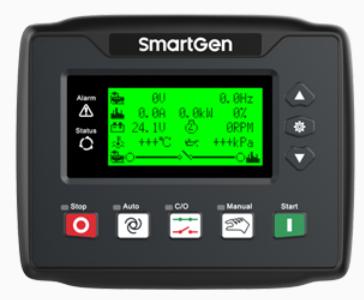

| Brand | Smartgen | Model | HGM4010N |  |
| Function: | |
• Start or Stop Generator set manually / automatically • Open controller output can be defined as Pre-heat/Idle output • High Coolant temperature protection • Low Oil pressure protection • Over load protection • Generator over/under frequency protection • Generator over/under/unbalance voltage Protection • Over speed protection |
| Note:Indicate this function depend on the set points of the
controller in field. |
| Optional accessories |
| Engine | • Heater • Battery Charger |
| Alternator | • Permanent Magnet Generator(PMG) |
| Control system | • Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling
System |
| Fuel system | • Daily Fuel Tank • Water Separator • Fuel Level Sensor |
| Others | • Rainproof Type • Soundproof Type • Trailer Type • Extra spare
Parts |
| Standard Accessories | Open type | Silent type |
| Sound-proof & Weather-proof Canopy | N/A | √ |
| Daily base fuel tank. 8 hours capacity | Optional | √ |
| Single-bearing generator again drops | √ | √ |
| Intelligent LED display control panel | √ | √ |
| Speed governor | √ | √ |
| Electric start and 12v charger | √ | √ |
| Standard air filter, oil filter, fuel filter | √ | √ |
| Radiator | √ | √ |
| High-efficient muffler | √ | √ |
| Circuit breaker | √ | √ |
| Exhaust elbow | √ | √ |
| Storage battery | √ | √ |
| Steel base-frame against vibration | √ | √ |
| Soft pipe for fuel and handle for lube going-out | √ | √ |
| Operation& Maintenance manual. | √ | √ |
| Drawing | Dimension |
 | Open type: 1400*650*1100mm 520 kg
|
 | Silent type: 2000*930*1200 mm 720 kg
|
Remark:
Prime Power (PRP): Prime power is available for an unlimited number of annual hours
in variable load application, in accordance with GB/T2820-97(EQV
ISO8528); a 10% overload capability is available for a period of 1
hour within a 12-hour period of operation.
Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency
power for the duration of a utility power interruption. No
overload, utility parallel or negotiated outage operation
capability is available at this rating.We offer client warranty of
complete genset 12 months or 2,000 running hours warranty which
comes first (longer warranty period can be offered with extra
charge)
Weichai engine and Leroy somer alternator enjoy worldwise after
service offered by Weichai and Leroy somer global after service
network.
Weichai engine enjoy 2 year or 2,000 running hours warranty.Quick
after service and parts are available from Stone Power or
distributors in your location.
Packing and Shipping:
Product Packaging:
The Weichai Diesel Generator Set is carefully packaged to ensure
safe transportation and delivery. Each generator set is securely
wrapped in protective material to prevent any damage during
transit. Additionally, the packaging includes clear labeling for
easy identification of the product.
Shipping:
Our shipping process for the Weichai Diesel Generator Set is
efficient and reliable. We work with trusted shipping partners to
ensure prompt delivery to our customers. Each package is tracked to
provide real-time updates on the shipping status. Rest assured that
your generator set will be delivered to you in a timely manner.
