Product Description:
Baudouin company was founded in 1918 in Marseille, France, with its
headquarters located in Cassis, France. It has a workforce of over
18,000 employees and a presence in approximately 100 countries,
enjoying a wide - ranging international influence.Baudouin offers
diesel generator sets with a wide power range to meet the needs of
various fields. In the data center sector, it provides generator
sets of up to 5250kVA, which is among the highest power ratings in
the market. In the industrial sector, it offers a variety of
products to meet specific demands. For the marine industry, its
engines are known for their genuine marine design, high
reliability, and easy maintenance.
Technical Parameters:

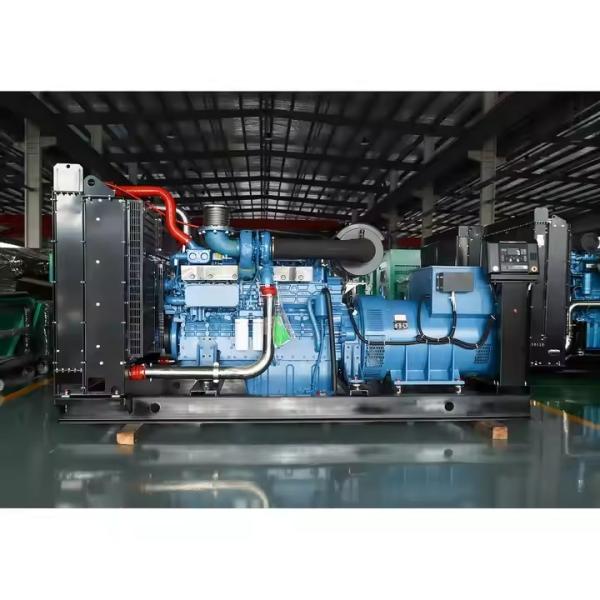

Generator set | Model No. | WPG700F7 |
| Standby power | 715KVA/572KW |
| Rated power | 650KVA/520KW |
| Output voltage | 415V |
| Frequency | 50 Hz |
| Noise level(7m) | 78 dB (silent type) |
| Power factor | COSΦ=0.8 |
| Phase/wires | 3 phase 4 wires |
| Start mode | Electric |
| Fuel consumption | 136.3L/h (100% load) 100 L/h (75% load) |
| Max currency(amps) | 995 |
| Protection | Low oil-pressure, High water temperature, Over-speed, Over-current. |
Engine | Brand | Baudouin |
| Model | 6M33G715/5 |
| Rated speed (r/min.) | 1500 |
| Cylinders layout | 6 in line |
| Fuel | 0# light diesel |
| Oil Capacity | 36/61 L |
| Compression Ratio: | 15:1 |
| Engine Power (prime/standby) | 575KW/633KW |
| Aspiration | Turbocharged&Aftercooled |
| Governor/Class | Electronic |
| Bore and stroke | 150×185 mm |
| Start mode | DC24V electric start |
| Displacement | 19.6 L |
Alternator | Brand | Leroy Somer |
| Model | TAL-A473-F |
| Rated speed (r/min.) | 1500 |
| Protection | IP23 |
| Insulation class | H |
| Frequency fluctuation | ≤±0.5 % |
| Voltage distortion | ＜4% |
| Output (Cont./Standby) | 660kva/725kva |
| Winding leads | 6/12 |
| Frequency | 50 Hz |
| Rated voltage | 400V/3 phase |
| Frequency regulation | ≤±0.5 %(stable) |
| Voltage control | AVR |
Technical parameters of Control Panel:
| Brand | UK Deepsea | Model | DSE7320MKII |
|
| Function: | |
• Start or Stop Generator set manually / automatically • Open controller output can be defined as Pre-heat/Idle output • High Coolant temperature protection • Low Oil pressure protection • Over load protection • Generator over/under frequency protection • Generator over/under/unbalance voltage Protection • Over speed protection • AMF |
| Optional accessories |
| Engine | • Heater • Battery Charger |
| Alternator | • Permanent Magnet Generator(PMG) |
| Control system | • Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling System |
| Fuel system | • Daily Fuel Tank • Water Separator • Fuel Level Sensor |
Others
|  • Rainproof Type • Soundproof Type • Trailer Type • Extra spare Parts |
| Standard Accessories | Open type | Silent type |
| Sound-proof & Weather-proof Canopy | N/A | √ |
| Integrated daily base fuel tank. | optional | √ |
| Bottom lifting hole | √ | √ |
| Single-bearing generator again drops | √ | √ |
| Digital type control panel | √ | √ |
| Speed governor | √ | √ |
| Electric start and 12v charger | √ | √ |
| Standard air filter, oil filter, fuel filter | √ | √ |
| Circuit breaker cabinet | √ | √ |
| Radiator | √ | √ |
| High-efficient silencer. | √ | √ |
| Exhaust elbow | √ | √ |
| Storage battery&battery charger | √ | √ |
| Steel base-frame against vibration | √ | √ |
| Soft pipe for fuel and handle for lube going-out | √ | √ |
| Operation& Maintenance manual. |  √ |  √ |
| Drawing | Dimension |
 |
Open type: 3810*1600*2100 mm 4,500 kg |

|
Slient type: 4900*2200*2450 mm 7,000 kg
|
Applications:
It offers a wide range of power outputs, from a few kilowatts to
several megawatts, suitable for various applications. For example,
the 6M33 engine can deliver high - quality performance in the range
of 250 kVA - 3300 kVA.It can provide stable and reliable power
output, meeting the electricity needs of various applications,
whether it is for backup power in critical facilities, primary
power in remote areas, or power for industrial processes.Widely
used in ships as the main generator set or emergency generator set,
providing power support for the ship's navigation, communication,
lighting, and other systems.It is an ideal backup or primary power
source for factories, mines, construction sites, etc., ensuring the
continuous operation of production equipment.Suitable for shopping
malls, hotels, office buildings, and other commercial buildings. It
provides emergency power during power outages to ensure the
operation of essential equipment such as elevators, lighting, and
air - conditioning.It provides reliable backup power for data
centers, protecting against data loss and equipment damage caused
by power outages.
