Weichai Baudouin diesel generator set open type prime rating 800KW/1000KVA 50Hz 400V 3 phase

Technical parameters of Control Panel:
Brand	Smartgen	Model	HGM 6110N
Function:
• Start or Stop Generator set manually / automatically • Open controller output can be defined as Pre-heat/Idle output • High Coolant temperature protection • Low Oil pressure protection • Over load protection • Generator over/under frequency protection • Generator over/under/unbalance voltage Protection • Over speed protection
Note:Indicate this function depend on the set points of the controller in field.

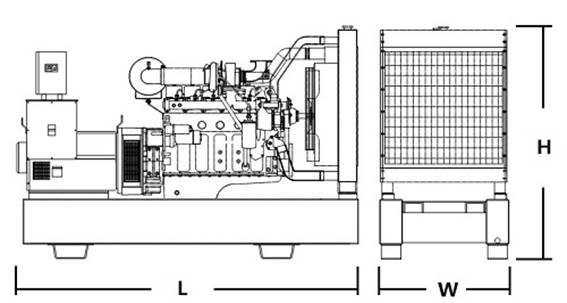

Drawing	Dimension
	Open type: 4350*1800*2200 mm 7,800 kg
	Slient type: 5500*2200*2450 mm 10,500 kg

Remark:

Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(EQV ISO8528); a 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.

Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Warranty:Stone Power provides a full line of brand new and high quality products. Each Genset is strictly factory tested before delivery.

We offer client warranty of 24 months or 2,000 running hours warranty which comes first

Baudouin Weichai engine and Leroy Somer alternator enjoy wroldwise after service offered by Baudouin Weichai and Leroy Somer global after service network.

Quick after service and parts are available from Stone Power or distributors in your location.
