44KW/55KVA CUMMINS Diesel Engine Power Generator with Stamford Alternator

    Buy cheap 44KW/55KVA CUMMINS Diesel Engine Power Generator with Stamford Alternator from wholesalers

    Buy cheap 44KW/55KVA CUMMINS Diesel Engine Power Generator with Stamford Alternator from wholesalers
    • Buy cheap 44KW/55KVA CUMMINS Diesel Engine Power Generator with Stamford Alternator from wholesalers

    44KW/55KVA CUMMINS Diesel Engine Power Generator with Stamford Alternator

    Ask Lasest Price
    Brand Name : Cummins Industrial Genset
    Model Number : SC50E5
    Certification : CE;BV;ISO;Soncap
    Price : USD$5600 ~USD$6700
    Delivery Time : 25 days
    Payment Terms : T/T or LC, D/P
    Supply Ability : 50 units per month
    • Product Details
    • Company Profile

    44KW/55KVA CUMMINS Diesel Engine Power Generator with Stamford Alternator

    Product Description:

    Standard Features

    1. Engine: DCEC Cummins 4BTA3.9-G2

    2. Radiator 50℃ max

    3. Fans are driven by belt, with safety guard

    4. 24V charge alternator

    5. Dry type air filter, fuel filter, oil filter

    6. Alternator: single bearing alternator

    7. IP23, insulation class H/H

    8. Main line circuit breaker

    9. Standard control panel

    10. Absorber

    11. Muffler

    12. User manual


    Diesel Engine Data
    Manufacturer:DCEC Cummins
    Model:4BTA3.9-G2
    Prime Power:40KW
    Standby Power:44KW
    Rated Speed:1500(r/min)
    Cycle:4 stroke
    Cylinder Arrangement:4 in line
    Displacement:3.9L
    Bore and Stroke:102*120(mm)
    Compression Ratio:17.5:1
    Governor Type:Electric
    Start battery voltage:24V DC
    Air Intake System
    Air Intake System:Turbocharged & Aftercooled
    Max Intake Restriction:5kPa
    Burning Capacity:1.98m3/min
    Air Flow:136m3/min
    Exhaust System
    Exhaust Gas Flow:4.27m3/min
    Exhaust Temperature:410℃
    Max Back Pressure:10kPa
    Fuel System
    Fuel System:Direct injection
    100%( Prime Power) Load:15L/h
    50%( Prime Power) Load:18L/h
    Oil System
    Total Oil Capacity:11L
    Oil Consumption:≤0.4g/kwh
    Engine Oil Tank Capacity:8.1-9.5L
    Oil Pressure at Rated RPM:345kPa
    Cooling System
    Cooling Way:Water-cooled
    Total Coolant Capacity:8.3L
    Thermostat:82-95℃
    Max Water Temperature:104℃
    Alternator Data

    Manufacturer:


    LEROY SOMER/
    STAMFORD/
    SIEMENS/
    MARATHON/
    ENGGA /
    KEPU
    Excitation Mode:Time harmonic wave excitation
    Number of phase and Access Act:3-phase 4-wire
    Connecting Type:"Y" type connecting
    Alternator Capacity:56KVA
    Alternator Efficiencies:95%
    Overload:(PRP)110% load can run 1h
    Protection Level:IP22-IP23
    Insulation Class, Temperature Rise:H/H
    Telephone Influence Factor (TIF):<50
    THF:<2%
    Voltage Regulation, Steady State:≤±1%
    Air Cooling Flow:2.69m3/s
    Altitude:≤1000m
    Genset Electrical Performance
    Voltage Regulation:≥±5%
    Voltage Regulation, Stead State:≤±1%
    Sudden Voltage Warp (100% Sudden Reduce):≤+25%
    Sudden Voltage Warp (Sudden Increase):≤-20%
    Voltage Stable Time (100% Sudden Reduce):≤6S
    Voltage Stable Time (Sudden Increase):≤6S
    Frequency Regulation, Stead State:≤5%
    Frequency Waving:≤1.5%
    Sudden Frequency Warp (100% SuddenReduce):≤+12%
    Sudden Frequency Warp (Sudden Increase):≤-10%
    FrequencyRecoveryTime(100%SuddenReduce):≤5S
    FrequencyRecoveryTime(Sudden Increase):≤5S
    Options
    EngineAlternator
    Heater 2KW & 4KWAnti Condensation Heater
    Battery Charger 3.5A & 7APermanent Magnet Generator(PMG)
    Water SeparatorDrop CT(For Paralleling)
    Daily Fuel Tank
    Fuel Level Sensor
    Control SystemOthers
    Remote Control PanelRainproof Type
    Auto Transfer Switch (ATS)Soundproof Type
    Paralleling SystemTrailer Type
    Open Type
    Overall SizeWeight
    1600(mm)*750(mm)*1200(mm)700(kg)
    Cummins open type image.jpg
    Soundproof Type
    Overall SizeWeight
    2159(mm)*833(mm)*1400(mm)1100(kg)
    Cummins 1200 GF Image.png

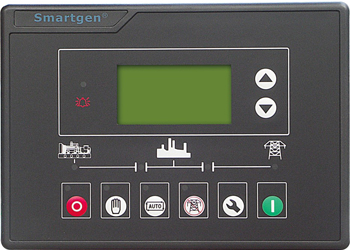

    Standard Control Panel
    Cummins 24GF

    DINGBO Standard Control Panel uses micro processing

    technique integrating digital, intelligent and network techniques

    which can carry out functions including auto start/stop, data

    measure, alarming. The controller uses LCD display, optional Chinese and English display interface with operation easy and reliable. It can be widely used in all types of generator automatic control system for compact structure, advanced circuits, simple connections and high

    reliability


    Auto Module Control Panel
    Cummins 24GFAuto Module Control Panel is the configuration for nobody on duty controlling generators. This kind of panel adopts auto module control system, with large LCD display to show the menu. Features: 6110 can receive remote output signal from ATS and realize auto start and stop of generators. 6310 can realize all functions of 6110, add RS232 interface which can communicate with PC to realize remote operation. 6410 Auto Mains Failure controller, can realize all functions of 6310, furthermore can detect ATS and control directly.
    Auto Parallel Control Panel
    Cummins 24GFThis new automatic parallel system adopts intelligent modules, inserted and folded installed, no need the peripheral relay and logic circuit. The main switch adopts electronic breaker or frame breaker, combined together with the generator, which is very reliable. One generator, one panel. The panel can be used both for singly and parallel. It is only need to parallel generator with such panel when the capability needs to be enlarged in the future.
